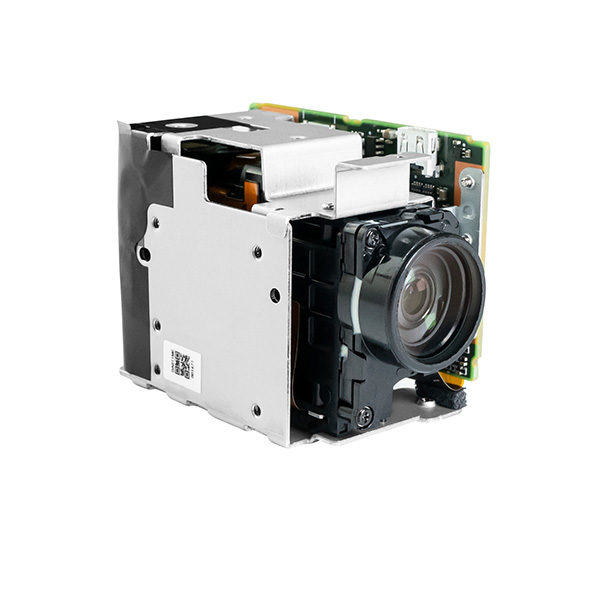

TAMRON MP3010M-EV-1
Compact and Lightweight Camera Module
Equipped with 10x optical zoom and Day/Night feature
Compact and lightweight design by utilizing industry-leading compact zoom lens
Camera module for various applications
Tamron MP3010M-EV Features:
CMOS image sensor with SONY STARVIS™ technology,
10x optical zoom lens,
16x digital zoom,
Output pixels up to 1920 x 1080,
Day and night switch function,
Electronic anti-shake function,
Backlight compensation function,
......

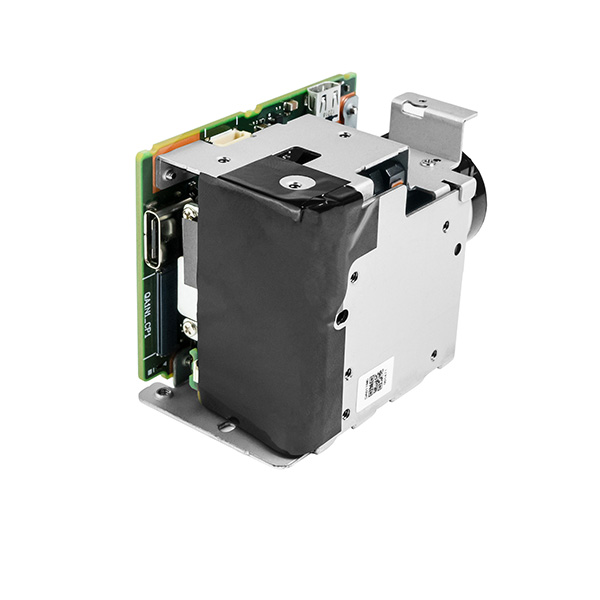

TAMRON MP3010M-EV-4Product Specs
| Image Sensor | Sony's CMOS image sensor with STARVIS™ technology |
| Pixel output (H x V) | 1920x1080 or 1280x720 |
| Signal System (HD) |
1080p/60, 1080p/59.94,1080p/50, 1080p/30,1080p/29.97, 1080p/25,720p/60, 720p/59.94,720p/50, 720p/30,720p/29.97, 720p/25 |
| Signal system(SD) | NTSC/PAL |
| Minimum illumination | 0.1 lx (1/30sec,F/1.8,50%,Color,Typical ) 0.025 lx (1/30sec,F/1.8,50%,B&W,Typical ) |
| S/N Ratio | More than 50dB |
| Gain | Auto/Manual |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Sync System | Internal |
| Backlight compensation | ON/OFF |
| White balance | ATW1(Narrow), ATW2(Wide),INDOOR, OUTDOOR,One push, Manual |
| Lens | 10x optical zoom f=3.3～33mm F/1.8～F/3.4 |
| Aperture Control | 16 steps |
| White Balance | ATW1 (Narrow), ATW2 (Wide), One Push, Manual (B, R) |
| AE (Auto exposure mode) | Auto, Manual, Priority mode (shutter/iris) |
| Lens | 10x optical zoom, f=3.2mm (wide) to 33.6 mm (tele) F1.8 to F3.4 |
| Digital Zoom | Up to 16x |
| Focusing system | Auto, Manual, One push,AF sensitivity |
| Minimum object distance (wide to tele) | Visible light: 10mm(wide)～800mm(tele) 850nm: 10mm(wide)～1200mm(tele) |
| Horizontal viewing angle (wide to tele) | 59.2°(wide)～6.7°(tele) |
| Day/Night | ON/OFF (ICR switching) |
| EIS | OFF/ON |
| Horizontal resolution | Center : 800TV lines (Typical) |
| Video Output | LVDS: digital Y/Pb/Pr 4:2:2 HDMI: digital Y/Pb/Pr 4:2:2 (HDMI Type D) |
| Video output (SD) | CVBS 1.0V(p-p,75Ω) |
| Camera control | VISCA |
| Power requirement | DC 8～12±10% |
| Power consumption | Approx.2.5W(Approx4.4W in the zoom and focus operation) |
| Operating temperature | -5～+60°C |
| Storage temperature | -40～+60°C |
| Operating humidity | 20%～80% (no condensation) |
| Storage humidity | 20%～90% (no condensation) |
| Dimensions (W x H x D) | 33 x 43 x 59 mm |
| Weight | Approx. 70g |
