How to install the serial port driver of LVDS to USB3.0 video capture module?

Full HD video secondary development solution provider Ruiloog Electronic, independently developed HD video capture module, there are two kinds, one is USB3.0 TYPE-A interface, using a British company’s program; The other is the USB3.0 TYPE-C interface, using the domestic integrated program, these two acquisition modules are driving-free for the camera, but for the serial port, they need to be driven, and because the program used is not the same, the driver is not the same.

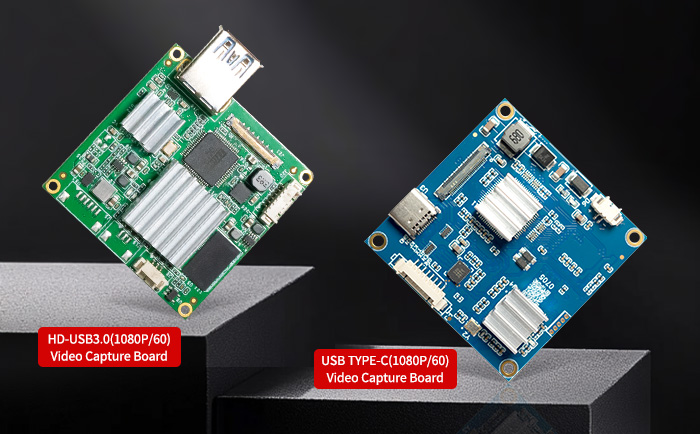

LVDS to USB3.0 capture module and LVDS to TYPE-C capture module

Therefore, it is very necessary to invite Danny Wong, senior engineer of Ruiloog Electronic, to introduce this knowledge to everyone.



Preparatory work

1. Determine the operating system:
Different operating systems, such as Windows and Linux, have different methods for installing drivers.
Verify your operating system version in order to download drivers that are compatible with it.



2. download the driver:
Linux system, if the use of the virtual machine Ubuntu2204, LVDS to USB3.0 video capture module serial port driver is automatically installed, as long as the Linux system in the lower right corner of the corresponding device, its “driver” can be connected, display “√” at the device, it indicates that the driver has been connected.



For Windows,
First of all, find the model of the serial chip on the capture module, the serial chip model of the LVDS to USB3.0 video capture module is FT232, and then go to Baidu to find the official website of the chip, find the driver of the model on the official website and download.

The serial chip model of LVDS to TYPE-C video capture module is CH340N, and you can also go to its official website to download the driver.

In order to facilitate users to download the serial port driver of the video capture module more quickly, Danny Wong, senior engineer of Ruiloog Electronic, put them on the corresponding product page of Ruiloog Electronic’s official website:
FT232 serial port driver download link:
CH340N serial port driver download link:

Install driver

1. FT232 Serial port driver
After downloading the driver, Extract the compressed package and you will see the “CDM212364_Setup.exe” file. Right-click on the file, select and click “Run as administrator”, click “Extract” and “Next page” in the pop-up dialog box, and select the option of “I accept this protocol”. Continue to click “Next Page” and “Finish” to complete the installation of the serial port driver.

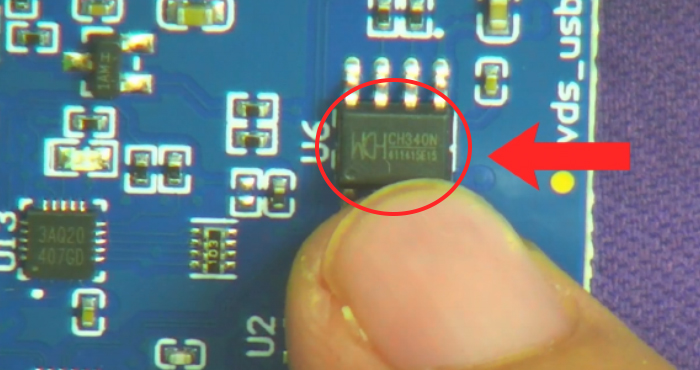

LVDS to TYPE-C capture module serial driver



2. CH340N Serial port driver
Decompress the compressed package, right-click the CH241SER.exe file, select and click Run as Administrator. In the dialog box that is displayed, click Install. Dialog box, indicating that the serial port driver installation is complete, click “OK” to exit the dialog box.

Verify installation

After the driver installation is complete, we need to verify that the installation is really successful.
First, LVDS to USB3.0 video capture module and connected to the computer via USB cable.

The second step, in the computer desktop “computer” right-click, choose “management” option click the left button, in the pop-up “Computer management” dialog box, click the left navigation bar “Performance > Device Manager”, and then in the right content click “port (COM and LPT)”, if you find that there will be an additional COM port, then congratulations you, The serial port driver has been installed successfully.

LVDS to TYPE-C video capture module is the same verification method.



Sum up

The above provides a basic guide to help you download, install, and verify serial drivers for LVDS to USB3.0 and LVDS to TYPE-C video capture module on Windows systems. If you need a more detailed video of the operation or run into problems, you can contact Danny Wong, senior engineer of Ruiloog Electronic for help.
