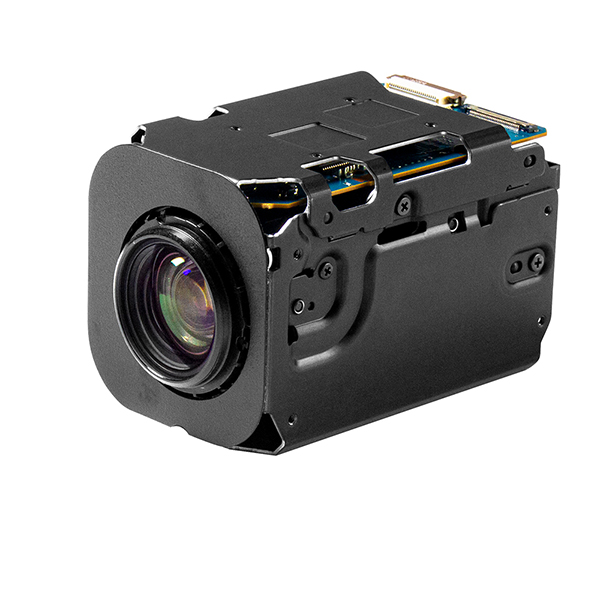

Sony FCB-EV7100 (FCBEV7100) 10x Full HD Color Camera Block Small and Light

FCB-EV7100 Main Features:


1/2.8 type Exmor CMOS,2.38 million pixels
10x Optical Zoom
Full High Definition 1920 x 1080/60p
Color Enhancement
Visibility Enhancement
Auto ICR
Digital 2D/3D Noise Reduction
Small and Light


  • Product Details
  • Product Specs
  • Downloads

SONY FCB-EV7100 Product Details:


Sony FCB-EV7100 high quality lens offers a bright F1.8 maximum aperture and 10x optical zoom range.

SONY FCB-EV7100 and SONY FCB- EV7300 , SONY FCB-EV7500 differences:
All three movements are 1/2.8-inch Exmor CMOS image processor with approximately 2.38 effective megapixels providing full HD 1080/60P video output.

Optical zoom: FCB-EV7100 is 10 times, FCB-EV7300 is 20 times, and FCB-EV7500 is 30 times.

In the minimum illumination: there are also a few differences in the three types. For details, see related parameters or articles.
Dimensional weight: FCB-EV7300 and FCB-EV7500 are only about 1mm in size, while FCB-EV7100 is much smaller than the previous two (45.6 x 48.8 x 78mm), and the FCB-EV7100 is also the most weight. Light (210g).

SONY FCB-EV7100 & FCB-CV7100 technical manual
Functional aspects : FCB-EV7300 and FCB-EV7500 have the same function, while FCB-EV7100 only lacks anti-shake function than the former two.

PS: More comparison and analysis of Sony’s movement parameters, please pay attention to the official website of Xuan Zhan Technology! Didn’t you want to know? Tell us anytime through the contact information on the website!

SONY FCB-EV7100 offers a wide range of products from 10x to 30x optical zoom, as well as HD or Full HD. All of these cameras inherit many of the world’s best-known FCB features, including wide dynamics, automatic day and night conversion, and spherical privacy zone masking. These practical features are suitable for a wide range of applications and meet the needs of your users.


SONY FCB-EV7100 Key Feature:

Capturing the sharp, clear Full HD (1080/60p)
high-performance 1/2.8-inch ExmorTM CMOS imager for instant, full-HD (1920×1080) picture quality in low-light environments.The progressive scan mode reduces the blur of the picture and makes the picture smoother – it captures the details of the motion picture and is ideal for shooting.FCB-CV7100 technical manual

Fast response, high transparency 10x optical zoom lens
This high quality lens has a very high transmittance, F1.6 maximum aperture, 10 times optical zoom range. At the same time, its fast focusing capability (from wide-angle to far-end) enables smooth, high-speed conversion of the surveillance range from wide-angle to near-in-the-go, making it ideal for security and surveillance applications.

StableZoomTM ( Stable Focus )
uses an image stabilizer, optical and digital zoom to improve picture quality while maintaining the original horizontal viewing angle to ensure that the picture size remains the same and reduces blurring.

The 2D/3D noise reduction feature
features advanced noise reduction technology that filters out unwanted noise in the picture, giving users a clear picture even in low-light environments. The noise reduction level can be selected from five levels to accommodate a variety of different operating environments.

The visual enhancement and fog-through function
picture quality can be dynamically enhanced. In a given dynamic range, the picture is continuously adjusted to adjust the scene pixel by pixel. In addition, they also have a fog-passing function that instantly captures sharper images in a smoky environment.

Wide dynamic range

Wide dynamic range
Wide dynamic range picture processing technology allows users to see detailed images in high contrast or backlit environments.

The fog-
through function allows for clear and natural viewing in haze or hazy scenes. When this feature is activated, the camera detects the haze level and automatically applies the desired effect. The level of these effects can be adjusted by the VISCA command according to user requirements.

HLC ( Highlight Compensation )
HLC (Highlight Compensation) technology helps to improve the visibility of the license plate when shooting bright headlights, for example, in low light conditions. The bright parts of the image are automatically masked and compensated for better visibility.

Automatic ICR ( Automatic IR Cut Filter Removal )
In low light conditions, the camera automatically switches from day mode to night mode, eliminating the infrared cutoff filter to increase sensitivity and sharp images in near darkness. The spherical privacy zone masking feature makes it possible to selectively mask the field of view for privacy. The shaded area automatically interlocks with the pan/tilt/zoom movement of the camera.

A wide range of versatile operations
ensure versatile operation through a wide range of functions and adjustments, including: white balance mode; picture effects ( E-Flip, Nega art, black and white, mirroring, color enhancement ); motion detection/alarm; picture freeze; temperature Reading; slow AE response; electronic shutter/slow shutter; and title display/camera mode display (English).

Providing clear monitoring images

day and night continuously, in the operation of day and night continuous monitoring, the lighting conditions are often changed, and these camera components also have optimized picture quality. In high sensitivity mode, the camera assembly can operate effectively at illumination levels as low as 0.35 lx (ICR on).

Automatic day/night conversion function Automatic infrared filter removal function. In low light environment, the camera unit automatically switches from day mode to night mode, removes the infrared filter, and improves sensitivity so that a clear picture can be taken at night. The spherical privacy zone masks the user to select an area in the monitoring screen for privacy masking. The shaded area is automatically locked as the camera pans/tilts/zooms.


SONY FCB-EV7100 Applications:

  • Security & Surveillance
  • Medical Treatment
  • Broadcast
  • ITS


Product number FCB-EV7100
Sensor Type 1/2.8-type CMOS
Auto ICR function Yes (adjustable threshold)
ICR function Y
Freeze Y
Auto Slow Shutter Y
Slow Shutter Function Y
Wide Dynamic Range Yes (Advanced 90dB 1080p60, 130dB 1080p30)
Signal System 1080p/29.97, HD: 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080p/30, 720p/59.94, 1080i/50, 1080i/59.94, 1080p/25, SD (NTSC-PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60
Picture Elements About  2.38  million pixels
Horizontal Resolution 1920*1080(FHD)
Lens 10  x optical zoom
Lens – Detail f=3.8mm (wide-angle end  ) to 38mm (distal  )
Lens – f stops F1.8  to  F3.4
BLC Have
Digital Zoom 12  times  ( 120 times  after using optical zoom )
Angle of View H (WIDE) 1080p mode 67.0° ( wide-angle end ) to 7.6° ( distal )
720p mode 67.0° ( wide-angle end ) to 7.6° ( distal )
SD mode 50.3° ( wide-angle end ) to 5.7° ( distal )
Min Working Distance (WIDE) 10mm ( wide end )  to  800mm ( distal )  (default  :  320mm)
Title display 20  characters  /  line,  up to  11  lines
Recomended Illumination 100  lx  to  100,000  lx
Minimum Illumination(50%) High sensitivity mode Color : 0.35 lx (F1.8, automatic gain control on , 1/30 second )
Normal mode Color : 1.4 lx (F1.8, automatic gain control on , 1/30 second )
Visual enhancement Have
Progressive scan mode Have
Image stabilizer No
SN Ratio 50  dB  or more
Electronic Shutter Speed 1/1  second to  1/10,000  second,22  steps
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, One-push, Manual, Sodium Vapor Lamp Fix/Auto/outdoor
Gain Auto  /  Manual  (0  steps to  28  steps  ,  +2  steps  /  total  15  steps)
Maximum gain limit  (6  steps to  28  steps  ,  +2  steps  /  total  12 steps  )
AE Control Full Auto, Shutter Priority, Iris Priority, Manual, Bright, Exposure Compensation, Slow AE, Back Light Compensation, Slow Shutter – Auto/Manual, Min shutter limit
EV Compensation Have
Flicker Compensation No
Noise Reduction 6 steps (Adaptative 3DNR)
Spot AE Y
Focusing System Auto (Sensitivity: normal-low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Near Limit, Focus Compensation with IR lighting
Picture Effects Black & White, Neg. Art, E-Flip, Mirror, Color enhancement, Defog (Auto, 3 levels), Visibility enhancer, Black level, gamma, Sat/Hue Adjust, HLC
Character Generator Yes (20 characters/line, max. 11 lines)
Grid/Cross Disaply Yes
Privacy Zone Masking Yes (with Spherical Pan/tilt)
Motion detection Have
Interlock with pan, tilt and zoom Yes (Spherical interlocking)
Alarm function Yes (Motion detection with 4 zones)
Aperture Control 16 steps
Image freeze Have
Serial Interface VISCA protocol (TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps Stop bit 1/2 bit
Camera component mode display Have
Video Output HD: Analog Component (Y/Pb/Pr), Digital (Y/Cb/Cr 4:2:2) Dual/single LVDS SD: VBS
Connector 30 pin LVDS, 24-pin FFC
Storage Temperature/Humidity -20 ° C  to  60 ° C/20%  to  95%
Operating temperature/ Humidity -5 ° C  to  60 ° C/-20 ° C  to  60 ° C
Power Consumption Power consumption 3.4W (zoom/focus not on) 3.7W (zoom/Focus on)
Power Voltage 6.0 V to 12.0 V DC
Weight 210g
Dimensions (W × H × D) 45.6×48.8×78.0 mm
