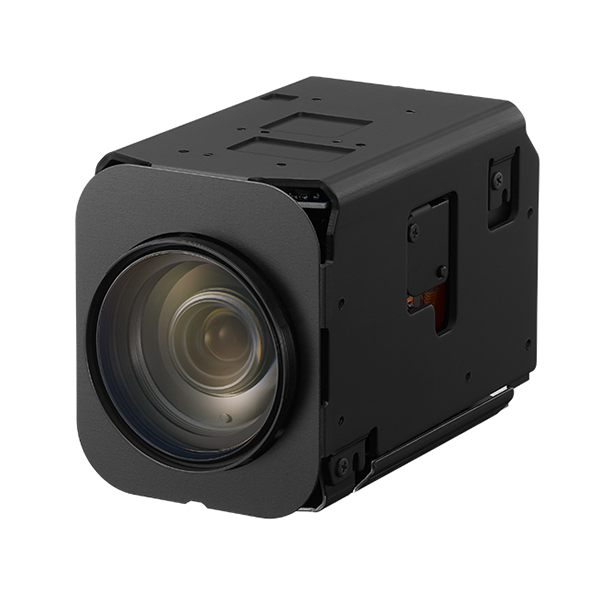

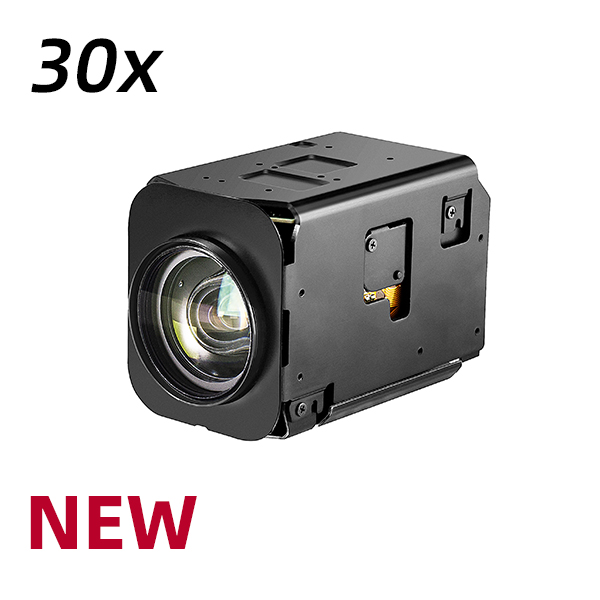

FCB-EV9520L Product Details:
FCB-EV9520L, SONY’s new 2022 full HD color compact camera module, 2MPixel Starvis2 image sensor, is expected to be available in the first half of 2023.
FCB-EV9520L, with a 30x enhanced optical zoom, features a larger 1/2.8-inch image sensor (IMX-662) and an ISP provided by its Japanese manufacturer, resulting in higher clarity. This full-HD model (LVDS output) can be used in a variety of scenarios, including harsh environments. In particular, the new super image stabilizer substantially improves blur and generates strong vibration suppression compared to conventional models. The shape and dimensions are compatible with previous models.
FCB-EV9520L provides the market with an upgrade path to the widely used FCB-EV7520 series. As it retains exactly the same form dimensions (50mm x 60mm x 89.7mm) as the FCB-EV7520, it provides customers with a straightforward integrable alternative and minimizes the engineering changes involved.
SONY FCB-EV9520L and FCB-EV7520, FCB-EV9500L volume comparison
SONY’s new FCB-EV9520L camera will be able to meet the needs of a wide range of different fields. These areas include high-end surveillance systems, offline industrial inspection, medical imaging (for dental and surgical work), autonomous driving, UAV /agv remote control, underwater robots, shipborne systems, and others.
FCB-EV9520L Functional features:
Sensor: 1/2.8 “2 MP Starvis 2
Lens: 30x enhanced optical zoom
Image format: 1080P60
Video output: LVDS
Wide dynamic: 130 dB
H fov: 63,7°
Starlight night vision: starlight level low light performance optimization, infrared night vision effect is better
Regional functions: Support regional focus, regional exposure, regional white balance
Other features: super anti-shake function, good optical axis consistency
Size: 50 × 60 × 89.7 mm

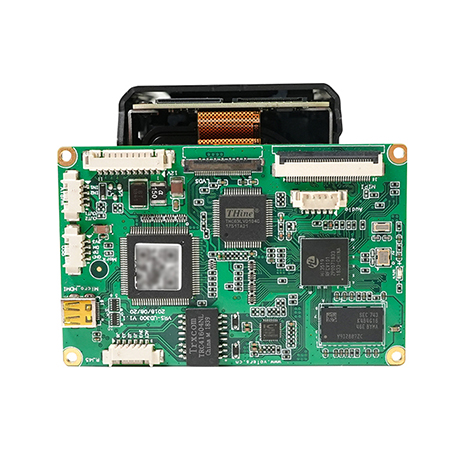

FCB-EV9520L+HD-HDMI Interface Board
FCB-EV9520L+3G-SDl Interface board
FCB-EV9520L+HD-IP Interface Board
FCB-EV9520L+LVDS to USB3.0 Capture Module
FCB-EV9520L+MIPI to IP Network Access Interface Board
FCB-EV9520L+SDI/HDMI/CVBS all-in-one Interface Board
FCB-EV9520L Application:
Security monitoring and control
Intelligent transportation
Video conferencing
Unmanned aerial vehicle
Uav photoelectric pod
The Medical industry
Robot/underwater vehicle
Police car camera
RVI industrial camera
Offline industrial inspection
Medical imaging
Autonomous driving
Ship borne system
FCB-EV9520L Product Specs:
| Image Sensor |
1/2.8-type STARVIS 2 CMOS Sensor (Approx. 2.13M pixels) |
| Output Image Size (H x V) |
1920 x 1080, 1280 x 720 |
| Signal System |
1080p/60, 1080p/59.94, 1080p/50,
1080p/30, 1080p/29.97, 1080p/25,
1080i/60, 1080i/59.94, 1080i/50,
720p/60, 720p/59.94, 720p/50,
720p/30, 720p/29.97, 720p/25 |
| Minimum Illumination (50%, High Sensitivity MOde ON) |
ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s)
ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (1/4 s or 1/3 s, 30%) |
| Minimum Illumination (50%, High Sensitivity MOde OFF) |
ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s)
ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Recommended Illumination |
100 lx – 100,000 lx |
| Gain |
Auto/Manual (0 dB – 50.0 dB), 0 – 28 steps |
| Shutter Speed |
1/1 – 1/10000 s, 22 steps |
| Sync System |
Internal |
| Exposure Control |
0 dB – +- 10.5 dB, 15 steps |
| Backlight Compensation |
Yes |
| Gamma |
Standar/Straight Gamma |
| Aperture Control |
16 steps |
| White Balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB |
| AE (Auto Exposure Mode) |
Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE |
| Image S/N |
Image S/N |
| Lens (wide to tele) |
30x optical zoom，12x Digital Zoom
f= 4.3 mm to 129 mm, F1.6 to F4.7 |
| Zoom Mode |
Standard Mode / Variable Mode / Direct Mode |
| Zoom Movement Speed |
Wide end to Tele end TBD
Wide end to Digital 12x tele TBD
Digital wide to Digital 12x tele TBD |
| Focusing System |
Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus |
| Focus Movement Time |
TBD |
| Horizontal Viewing Angle
(wide to tele) |
Distortion Compensation Off : 64.0° to 2.4°
Distortion Compensation On : 61.5° to 2.3° |
| Minimum Object Distance (wide end to tele end) |
100 mm – 1200 mm |
| Auto ICR |
Yes:ON (B&W/Color) |
| Wide Dynamic Range (Wide-D) |
Yes |
| Visibility Enhancer |
Yes |
| Defog |
Yes (low/mid/high) |
| Noise Reduction |
Yes (3D + 2D / Independent setting (3D, 2D) |
| Progressive Scan Mode |
Yes |
| Image Stabilization |
Yes: Super image stabilizer (Super / Super+) |
| Spot Light Avoidance |
Yes |
| Motion Detection |
Yes |
| Privacy Zone Masking |
Yes |
| Alarm |
Yes |
| Slow AE Response |
Yes |
| Picture Effects |
Black White (Monochrome Image) |
| Picture Freeze |
Yes |
| Electronic-Flip (E-FLIP) |
Yes |
| Mirror Image |
Yes |
| Slow Shutter |
Yes |
| Temperature Readout |
Yes |
| Title Display |
Yes (20 characters / line, max. 11 lines) |
| Camera Mode Display |
Yes (English) |
| Video Output |
Digital : Y/Pb/Pr 4:2:2 (LVDS)
(Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock)
(SMPTE274M/SMPTE296M) |
| Camera Control Interface |
VISCA protocol (CMOS 3.3V Level, 5.5V tolerance);
Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Power Requirements |
7.0 V – 12.0 V DC |
| Power Consumption |
4.4 W (When motor operates: 5.4W) |
| Operating Temperature |
-5 °C – +60 °C (23 °F to +140 °F) |
| Storage Temperature |
-20 °C – +60 °C (–4 °F to +140 °F) |
| Operating Humidity |
20% – 95% (Absolute humidity : 36 g/m3) |
| Storage Humidity |
20% – 95% (Absolute humidity : 36 g/m3) |
| Dimensions (W x H x D) |
50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 in.) |
| Mass |
Approx. 239 g (8.4 oz)，Weight loss version: Approx 165g |
