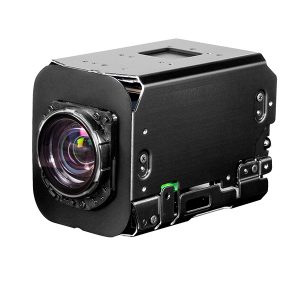

Sony FCB-ER8530 (FCBER8530) 4K Ultra HD 20x Zoom Color Camera Block

Sony FCB-ER8530 Features:


4K CMOS Sensor.
20x optical zoom.
Video Outputs for 4K & HD.
Auto ICR.
Privacy Zone Masking.
Noise Reduction.
Slow AE Response.
Visibility Enhancer.


  • Product Details
  • Product Specs
  • Downloads

Sony FCB-ER8530 Product Details:

FCB-ER8530 is a 4k block camera built by Sony,Type 1/2.5 Exmor R CMOS,Output Pixels(H×V)3840×2160(QFHD), 20x optical zoom, and compact figure. It is the preferred camera for ultra HD 4K video conferencing, medical testing, security monitoring and aerial photography of drones.


Sony FCB-ER8530 Features:

4K CMOS Sensor
Super Resolution Zoom
Video Outputs for 4K & HD
Auto ICR
Privacy Zone Masking
Noise Reduction
Slow AE Response
Visibility Enhancer


Sony FCB-ER8530 Applications:


Sony FCB-ER8530 Product Specs:

Image Sensor
(# Of Effective Pixels)
1/2.5-type Exmor R CMOS Sensor (8510K pixels)
Output Pixels (H × V) 3840×2160 (QFHD), 1920×1080 (Full HD), 1280×720 (HD), 720×480/576 (SD)
Signal System 2160p/29.97, 2160p/25, 2160p/23.98, 1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080p/23.98, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 480p/59.94, 576p/50
Minimum Illumination (50%, High Sensitivity Mode) 0.4 lx (Shutter Speed : 1/30 s)
0.06 lx (Shutter Speed : 1/4 s or 1/3 s)
Recommended Illumination 100 lx to 100,000 lx
SNR 50 dB
Gain Auto / Manual (0 dB to 48.0 dB), 0 to 16 steps
Shutter Speed 1 / 1 to 1 / 10000 s, 22 steps
Sync System Internal
Exposure Control 0 dB to ± 10.5 dB, 15 steps
Backlight Compensation Yes
Gamma Standard / Straight gamma
Aperture Control 16 steps
White Balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
AE (Auto Exposure Mode) Full Auto, Manual, Priority mode (shutter/iris), Bright, EV Compensation
Lens (wide to tele) 20x optical zoom,
f = 4.4 mm to 88.4 mm, F2.0 to F3.8
Zoom Mode Standard Mode / Variable Mode / Direct Mode
Super Resolution Zoom QFHD : 1.5x (max. 30x with optical zoom)
Full HD/HD : 2.0x (max. 40x with optical zoom)
Digital Zoom 12x (240x with optical zoom)
Optical wide to Optical tele 3.0 s (Focus Tracking ON)
Optical wide to Super resolution zoom tele 3.4 s
Optical wide to Digital zoom tele 5.0 s
Focusing System Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity : normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Near Limit, Spot Focus, IR Correction
Focus Movement time ∞ to Near : 0.1 s
Horizontal Viewing Angle (QFHD/Full HD/HD) (wide end to tele end) Approx. 70.2° to 4.1° (Image stabilizer OFF)
Approx. 60.0° to 3.5° (Image stabilizer ON)
Minimum Object Distance (wide end to tele end) 80 mm to 800 mm
Auto ICR Yes
Wide Dinamic Range (Wide-D)
(Auto mode)
Visibility Enhancer Yes
Defog Yes (low / mid / high)
Noise Reduction Yes (3D+2D, Independent setting (3D, 2D))
Image Stabilization Yes
StableZoom  Yes
Digital Output Yes
Spherical Privacy Zone Masking Yes
Motion Detection
Alarm (Auto ICR)  Yes
Slow AE Response Yes
Picture Effects Black & White (Monochrome Image)
Picture Freeze  Yes
Electronic-Flip (E-FLIP) Yes
Mirror Image Yes
Slow Shutter Yes
Temperature Readout Yes
Title Display Yes
Date/Time Display
Camera Mode Display Yes (English)
Key Switch Control
Camera Operation Switch
Video Output (QFHD/Full HD/SD) Digital : Y/Cb/Cr 4:2:2 8 bits component, R/G/B 4:4:4 8 bits component, Comparable to CEA-861-F *2
Camera Control Interface VISCA protocol (CMOS 3.1V) PTP USB 9.6 kbps, 19.2 kbps,38.4 kbps, 115.2 kbps, Stop bit : 1 bit
Power Requirements 6.0 V to 12.0 V DC
Power Consumption 3.0 W (When the motor operates : 4.0 W)
Operating Temperature -5 °C to +60 °C (23 °F to 140 °F)
Storage Temperature -20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 20% to 80% (Absolute humidity : 36 g/m3)
Storage Humidity 20% to 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D) 50.0 × 60.0 × 93.3 mm (2 × 2 3/8 × 3 3/4 in.)
Mass Approx. 275 g (10 oz.)
