FCB-EW9500H | SONY 4M HDMI auto focus camera block

Sony FCB-EW9500H Main Features:

◆ 4M (2160p/60)
◆ Video Output:HDMI
◆ 30x Enhanced Optical Zoom
◆ High Sensitivity
◆ Super Image Stabilizer
◆ Flare reduction with the new iris
◆ Color image acquisition during ICR ON
◆ Spot Focus · Spot AE · Spot AWB
◆ Wide Dynamic Range (Wide-D)
◆ Visibility Enhancer (VE)


  • Product Details
  • Product Specs
  • Video
  • Downloads

SONY Auto focus cameras new FCB-9500 series:

4M (2160p/60)
Video Output: HDMI
30x Enhanced Optical Zoom
Full HD (1080p/60)
Video Output: MIPI
30x Enhanced Optical Zoom
Full HD (1080p/60)
Video Output: LVDS
30x Enhanced Optical Zoom


FCB-EW9500H | SONY FCB camera block China general agent Product Details:

FCB-EW9500H is SONY’s new generation of 400W high-definition digital integrated camera movement, using 1/1.8 Type STARVIS CMOS Sensor, to achieve 30x enhanced optical zoom, with high definition, high sensitivity, high dynamic wide dynamic and super image stabilization and other functions.

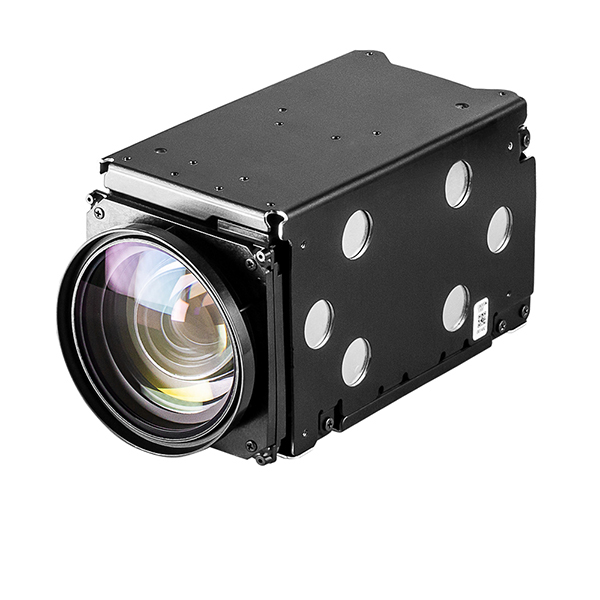

FCB-EW9500H | SONY 4M HDMI auto focus camera block - Full HD Camera - 1



FCB-EW9500H is a new high-definition digital integrated camera block launched by SONY in 2021, which makes the FCB camera module series further develop and expand. The new FCB-9500 series includes three models: FCB-EV9500M, FCB-EW9500H, FCB-EV9500L.

In order to meet the demand for high-quality, high-resolution images only provided by HD formats, the FCB-EW series features a range of 12x to 30X optical zoom lens components.


FCB-EW9500H Three main highlights:

High Resolution
FCB-EW9500H utilizing a 4M sensor and sharp lens achieve superior resolution and accurate image representation with the evolved AF/AE/AWB functions even in low light environments.

Combined with enhanced optical zoom achieve a high image quality from the Wide end to the Tele end.

FCB-EW9500H | SONY 4M HDMI auto focus camera block - Full HD Camera - 2

FCB-EW9500H High Resolution

High Sensitivity
FCB-EW9500H through introduction of new cell structures and circuit technology, the series efficiently uses light, achieving twice the
sensitivity compared to conventional image sensors.

Consequently,clear images can be captured even during the Conventional Model FCB-EW9500H night and in dark environments.


Super Image Stabilizer
FCB-EW9500H enables capturing of highly precise video with reduced blurring even in harsh environments with strong vibrations by greatly improving blur suppression and image stabilizer.

Equipped with the “Super” and “Super+ (plus)”* modes.

*Available during full HD or HD output

FCB-EW9500H | SONY 4M HDMI auto focus camera block - Full HD Camera - 3

FCB-EW9500H Super Image Stabilizer


FCB-EW9500H with HDMI 4K Interface Board:

FCB-EW9500H | SONY 4M HDMI auto focus camera block - Full HD Camera - 4


FCB-EW9500H Applications:

◆ unmanned flight equipment

◆ Security & Surveillance

◆ intelligent transportation

◆ snapshot kiosks

◆ police cars

◆ amblyopia

◆ video conferencing

◆ many other fields


FCB-EW9500H Product Specs:

Image Sensor 1/1.8-type STARVIS CMOS Sensor (4.17M pixels)
Output Image Size (H x V) 2688 x 1512
2560 x 1440
1920 x 1080, 1280 x 720
Signal System 2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON) ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s)
ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF) ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s)
ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination 100 lx – 100,000 lx
Gain Auto/Manual (0 dB – 50.0 dB), 0 – 28 steps
Shutter Speed 1/1 – 1/10000 s, 22 steps
Sync System Internal
Exposure Control 0 dB – +- 10.5 dB, 15 steps
Backlight Compensation Yes
Gamma Standar/Straight Gamma
Aperture Control 16 steps
White Balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode) Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Zoom 30x Enhanced Optical Zoom
36x Stable Zoom
12x Digital Zoom
Lens f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 – 4.8
Zoom Mode Standard Mode / Variable Mode / Direct Mode
Zoom Movement Speed Wide end – Tele end – 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF)
Wide end – Digital 12x tele – 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p)
Digital wide – Digital 12x tele – 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p)
Focusing System Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time ∞-Near: 1.4 sec.
Horizontal Viewing Angle 58.1°-2.3°
Minimum Object Distance (wide end to tele end) 100 mm – 1200 mm
Auto ICR Yes
Wide Dynamic Range (Wide-D) Yes
Visibility Enhancer Yes
Defog Yes (low/mid/high)
Noise Reduction Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode Yes
Image Stabilization Yes
Spot Light Avoidance Yes
Motion Detection Yes
Privacy Zone Masking Yes
Alarm Yes
Slow AE Response Yes
Picture Effects Black White (Monochrome Image)
Picture Freeze Yes
Electronic-Flip (E-FLIP) Yes
Mirror Image Yes
Slow Shutter Yes
Temperature Readout Yes
Title Display Yes (20 characters / line, max. 11 lines)
Camera Mode Display Yes (English)
Video Output Digital: Y/Pb/Pr 4:2:(HDMI) Y:8bit. C:8bit
RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit
Camera Control Interface VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements 7.0 V – 12.0 V DC
Power Consumption 4.6 W (When motor operates: 6.3W)
Operating Temperature -5 °C – +60 °C
Storage Temperature -20 °C – +60 °C
Operating Humidity 20% – 95% (Absolute humidity : 36 g/m3)
Storage Humidity 20% – 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D) 56.0 x 64.0 x 125 mm
Mass Approx. 439 g
