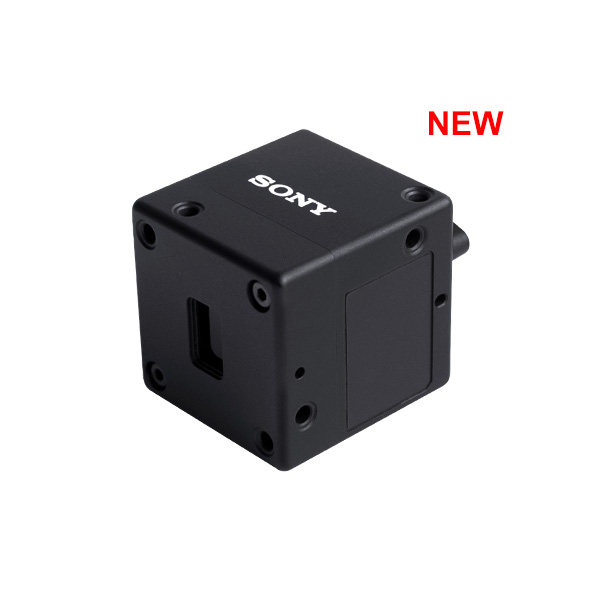

AS-DT1,Sony dToF LiDAR Sensor

Overview

Sony AS-DT1, is the world’s smallest and lightest LiDAR Depth Sensor structure measuring just 29mm x 29mm x 31mm (approximately 1.14 inch width x 1.14 inch height x 1.22 inch depth), excluding protrusions, and weighing only 50g (approximately 1.76 ounces).  The AS-DT1 leverages miniaturization and optical lens technologies from Sony’s machine vision industrial cameras making it ideal for applications where space, and weight constraints are paramount including, drones, robotics, and more.

Key Features

compact size: 29mm x 29mm x 31mm

Sensor: SPAD

Speed: 30fps

Accuracy: 5cm

Distance: 0.3~40m

Maximum range @ 15 fps, 50% reflexion & center:

Indoor 40 m & outdoor 20 m (to be confirmed into final specifications)

Accuracy @10 meter:

Indoor & Outdoor +/- 5 cm (to be confirmed into final specifications)

Detection points:

576 (24 x 24)

Frame rate:

30 fps or 15 fps@maximum range mode
