4MP/8MP Starlight Full-Color USB Camera Module

Overview

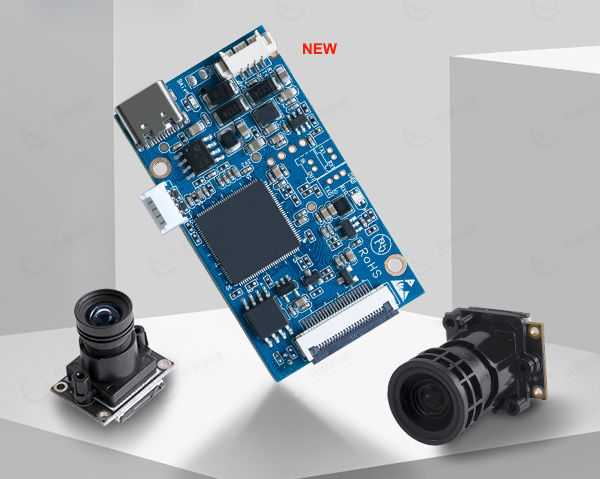

4MP/8MP Starlight Full-Color USB Camera Module Suitable for large-range, wide-angle, and large-field-of-view shooting scenarios, as well as night scenes with low light, it can present full-color high-definition and clear images. It is compatible with USB TYPE-C video output and can be used in smart terminals, face capture, smart robots, drones, FPV, unmanned vehicle shooting, night vision devices, and other equipment.

With a compact body, measuring only 50×28mm, it is easy to integrate into miniaturized products. It is equipped with multiple advanced image algorithms such as 2D/3D noise reduction and digital wide dynamic range, ensuring clear, delicate, and realistic imaging, excellent low-light performance, and low latency. The encoding format supports H.264/H.265 encoding, supports audio input, and can be customized and secondary-developed as needed.

Features

• Encoding Advantage: Supports H.264/H.265 encoding, achieving a perfect balance between ultra-low bit rate and high-definition image quality, effectively reducing data transmission bandwidth and storage space requirements.
• Excellent Image Quality: Up to 8 mega pixels, supports a resolution of 3840×2160, and the frame rate can reach 25 frames per second, presenting users with realistic and delicate visual images.
• Powerful Computing Power: Built-in 0.8T computing power, laying a solid foundation for intelligent analysis, enabling target detection, behavior recognition, etc., and adapting to diverse intelligent monitoring.
• Interface Standard: Supports standard UVC protocol and standard USB TYPE-C interface output, with good universality and compatibility.
• Convenient Power Supply: Supports microphone input, is compatible with lithium battery charging and power supply, and has the ability to continuously operate while charging.
• Strong System Adaptability: Compatible with various USB interfaces and multiple operating systems.

Interface assignment

No.	Type	Function	No.	Type	Function
F1	USB Type-C Interface	Video Output	F8	MIPI FPC Interface	Sensor board Interface(FPC cable)
F2	Battery Interface	Interface Definition: 1. BATA: Battery Positive 2. GND: Ground	F9	TF Card Slot	Maximum Support 512GB
F3	Molex Connector, Model: 532610471, Adopts 0.5mm Pitch 4Pin Connector	Power Input Interface/SIM Card Interface: Interface Definition for SIM Card: F3-1	F10	Reset Button	2-Point Touch to Restore Factory Settings
F4	Communication Serial Port 1	Interface Definition: 1. TX1: Port Transmit 2. RX1: Port Receive	F11	Power Button	Use When Powered On: Power On: Short Press Twice Power Off: Long Press
F5	Interface Definition: 1. TX1: Port Transmit 2. RX1: Port Receive	Interface Definition:1.Alarm Input 2.Alarm Output	F12	Audio Input	Microphone;Supports external microphone connection
F6	Communication Serial Port 0	Interface Definition: 1. GND: Ground 2. RX0: Port Receive 3. TX0: Port Transmit	F13	MIPI Flex Connector	LVDS coaxial connection to sensor board (1m max)
F7	Power/Status Indicator Dual-Color LED		F14

Procurement Model

Model No	Function
VRS-Q4-4F1/UT-D3	4MP Starlight Full-Color Night Vision Camera: Type 1 with USB TYPE-C + TF Card + M16 Lens
VRS-Q8-4F1/UT-D3	8MP Starlight Full-Color Night Vision Camera: Type 1 with USB TYPE-C + TF Card + M16 Lens

Product Accessories


4MP Sensor + M12 Lens (Optional)	8MP Sensor + M16 Lens (Optional)	(Standard)

System Structure	Product	4MP Starlight Full-Color USB Camera Module	8MP Starlight Full-Color USB Camera Module
	Main Control	Embedded single-core 32-bit ARM A35 processor, pure hardware compression, integrated FPU and NEON internally, main frequency 1.2GHz
	DDR	2Gb (Built-in)
	Flash	16MB
	System Architecture	Linux
	Sensor	SmartSens 1/1.8" 4MP Low-light CMOS	SmartSens 1/1.8" 8MP Low-light CMOS
Audio and Video Coding	Video Compression Format	H.265、H.264、MJPEG、YUY2、N12
	Audio Compression Format	G.711
	Video Format	2688x1520(400MP)/30fps、2560x1440(300MP)/30fps；2304x1296(300MP)/30fps、1920x1080/30fps	3840x2160(800MP)/25fps、2880x1620(400MP)/30fps、 2560x1440(300MP)/30fps、2304x1296(300MP)/30fps、 1920x1080/30fps
	Minimum Illuminance	Color 0.0001Lux@F1.2	Color 0.0001Lux@F1.2
	Signal-to-Noise Ratio (SNR)	>60db(AGC OFF)	>70db(AGC OFF)
	Wide Dynamic Range	Wide Dynamic Range
	Image Processing	Supports 3D noise reduction, image enhancement, dynamic contrast enhancement processing functions. Supports anti-flicker processing for video and graphics output, video support, and video and graphics overlay
	ISP	Supports 4x4 Pattern RGB-IR sensor, 3A (AE/AWB/AF), third-party 3A algorithms, fixed pattern noise elimination, bad pixel correction, lens shadow correction, lens distortion correction, purple edge correction, gamma correction, dynamic contrast enhancement, color management and enhancement, multi-level noise reduction (BayerNR, 3DNR), and sharpening enhancement. 2F-WDR
	Maximum Capture Image	2688x1520(400MP)	3840x2160(800MP)
	Maximum Video Input	2880x1620/25fps	3840x2160(500万)/25fps
	Image Settings	Brightness, Contrast, Saturation, Sharpness, etc.
Protoco	USB Protoco	Brightness, Contrast, Saturation, Sharpness, etc.
	Compatibility	Compatible with all types of USB interfaces and operating systems
Interface	USB TYPE-C Interface	1 port, USB2.0 video output, supports lithium battery power supply and charging
	Audio Input Interface	Microphone input or linear input (1Vvpp)
	TF Card Interface	1 port, maximum support 512GB
	IO Port	2 ports, 3.3V level, can be defined for alarm input, alarm output, ADC, communication and other functions
	Serial Port	2 channels, TTL level 3.3V
	Working Indicator Light	Power indicator light: Red light. Normal voltage: Red light on; Abnormal voltage: Red light off. Working status indicator light: Green light. Normal system operation: Green light slow flash; Recording: Green light fast flash; System abnormal: Green light off or always on
	Charging and Discharging Indicator Light	Red light. Charging process: Flashing; Fully charged: Always on Discharging process: Red light on; Low battery: Red light flashing
	Reset Interface	1 port, short press for 5 seconds to restore factory settings
Basic Parameters	Operating Temperature	-20~70°C
	Operating Humidity	Below 90%RH
	Operating Voltage	DC6-12V(+/-10%)
	Power Consumption	Typ. 1.6W	Typ. 1.8W
	PCBA Size	Mainboard: 50mm (length) x28mm (width) x5mm (height)	Sensor Board: 26mm (length) x19mm (width) x4mm (height)
