How to connect SONY FCB-ER8530 to 4K control board? How to output HDMI UHD video signal?

SONY FCB-ER8530 is a new generation of 4K ultra HD movement from SONY. It adopts a 20x optical zoom lens with a resolution of 2160P. The integrated camera module is equipped with the 4K HDMI coding control board of Xuanzang Technology. Let the picture shot by FCB-ER8530 integrated camera be perfectly displayed in 4K ultra HD display, and support OSD English menu and keys to realize zoom, focus and other functions. The following is the method of connecting FCB-ER8530 to 4K HDMI coding control board to output video signals.

First,  prepare relevant supporting products in advance

1. SONY FCB-ER8530 movement

2. 4K HDMI coding control board

3. TV or monitor that supports 4K

4. LVDS line

5, 6pin line

6, 7pin line

How to connect SONY FCB-ER8530 to 4K control board? How to output HDMI UHD video signal? - Company News - 1

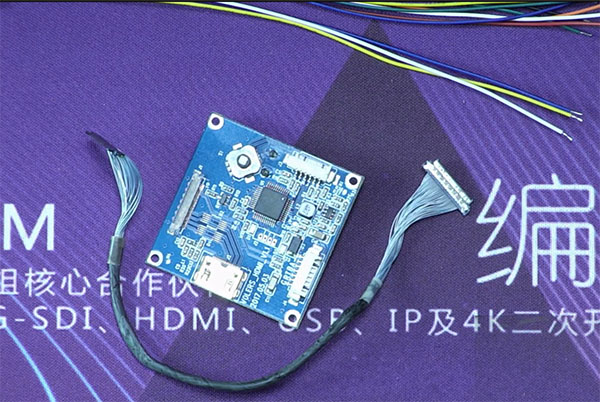

4K control board, LVDS line, 6pin line, 7pin line

Two, FCB-ER8530 and 4K coding control boardconnection steps:

In the first step, the SONY FCB-ER8530 is connected to the LVDS wire

The gold finger of the LVDS line must face up, and then push the LVDS interface of the SONY FCB-ER8530 movement in parallel. Do not push it sideways, which is easy to short circuit.

In the second step, the LVDS cable is connected to the 4K HDMI control board

The 4K HDMI coding control board is also connected to the LVDS line, which is promoted in parallel.

Step 3, HDMI cable connects the display and 4K HDMI control board

Connect the HDMI cable to the 4K display first, and then connect the other end of the HDMI cable to the 4K HDMI control board. In order to reduce the volume, we choose the MINI HDMI interface on the 4K HDMI control board.

Note: The connected TV or monitor must be 4K, otherwise the image will not be displayed.



How to connect SONY FCB-ER8530 to 4K control board? How to output HDMI UHD video signal? - Company News - 2

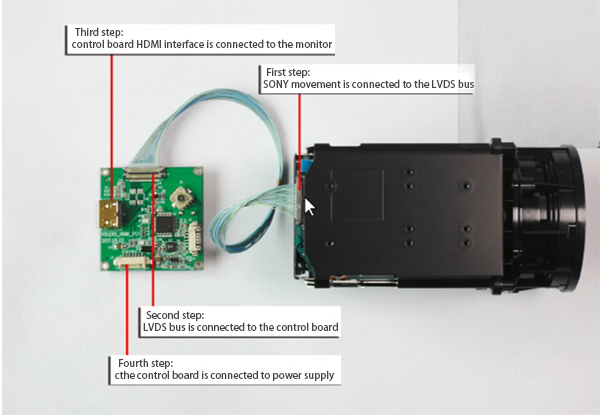

SONY FCB-ER8530 connect 4K coding control board steps

Step 4: Connect the power cord

We now connect the power supply, connect the power after the camera image, in the boot screen has displayed baud rate and address code and other parameters.

Next, we look at the two red lights on the control panel. One red light is always on, and the other red light is always flashing. The red light is the indicator light representing the power supply, and the red light is the program running.

Long press the five-way button for 5 seconds to bring up the parameter menu of FCB-ER8530, and then you can modify these parameters by the five directions up and down, the five-way button up and down the two directions can adjust the FCB-ER8530 movement picture enlarged or reduced.



How to connect SONY FCB-ER8530 to 4K control board? How to output HDMI UHD video signal? - Company News - 3

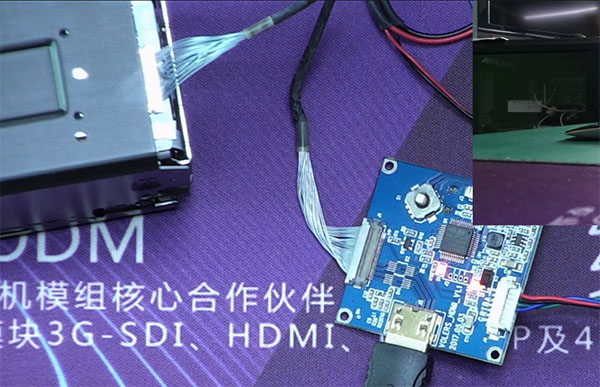

FCB-ER8530 with 4K coding control board

Shenzhen Xuan Zhan technology has been committed to the second development of SONY movement and Wells movement, and provide related products and parameters of the movement agreement, technical manuals, etc., if you have any questions can contact us!
