Why does USB3.0 replace USB 2.0? What are the features of the USB3.0 interface board

USB interface upgrade from 2.0 to 3.0, what are the outstanding features? What kind of changes have been brought about? What are the different features of Xuanzhan USB3.0 interface board?

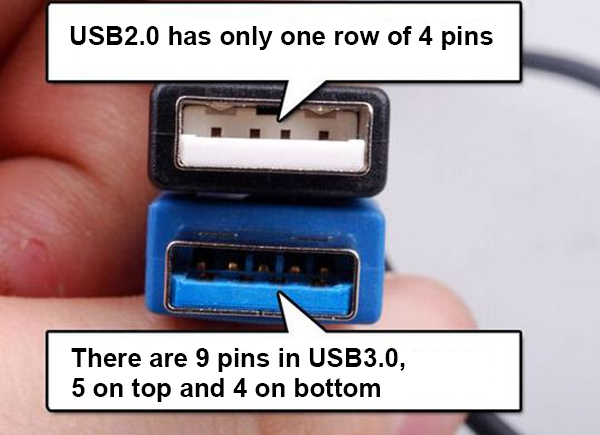

Why does USB3.0 replace USB 2.0? What are the features of the USB3.0 interface board - Sony Camera Information - 1


1. Speed

USB3.0 is also known as “super speed” for one reason. This is 10 times faster than USB2.0. USB transfers data at a nominal rate 3.0 of 5.0 Gbit/s.

2. Compatibility

Almost all new USB3.0 products are backward compatible with USB2.0 ports. Therefore, upgrading to a new USB3.0 camera or capture device does not require a USB3.0 capable computer. That said, you can’t take the speed advantage of USB3.0 without a USB2.0 port. “Plugs and sockets from both USB3.0 and USB 2.0 (or earlier) are designed to be interoperable Type A.”

3. Adapt to future development

There’s nothing worse than buying a new electronic device only to find that it’s been swapped out for a faster sexy model. USB3.0 products are unlikely to be replaced anytime soon.

4. Add functionality

USB2.0 is only half-duplex meaning it can only send communication in one direction at a time. USB3.0 is full-duplex, which means it can send signals in both directions. While real-world products are still being developed. Expect to use a single USB3.0 connection to see the two-way communication capabilities.

5. Increased bandwidth

As the demand for bandwidth increases, USB3.0 is in probobly’s current need to deliver superior products. Definitely 1080p video at 30 frames per second requires a level of bandwidth above what USB 2.0 can handle without compression, but consider the bandwidth required by a device such as a USB hub.

Xuanzhan technology USB3.0 interface board is specially developed and designed for SONY FCB HD camera module. It is connected to the coding board through LVDS interface and supports the output of 1080P60 HD video signal.

USB3.0 interface board supports various functions such as direct control of camera zoom through USB serial port, and is widely used by SONY camera development engineers. And support a set of external serial ports, convenient for various control boards to control the camera. Widely used in medical equipment and image detection equipment and other fields.

Why does USB3.0 replace USB 2.0? What are the features of the USB3.0 interface board - Sony Camera Information - 2

USB3.0 interface board


USB3.0 interface board is suitable for SONY FCB EV and EH series HD integrated camera modules and most HD cameras with the same interface as FCB series camera.

Connect the movement through LVDS interface, automatically identify the HD video format of the movement. Support 720P, 1080I, 1080P frame rate, so that the SONY FCB integrated camera shot images immediately displayed on the computer screen.

USB3.0 interface board can output standard UVC protocol HD video, in Windows7, Windows 10 systems are free of driver.
