Sony FCB camera block

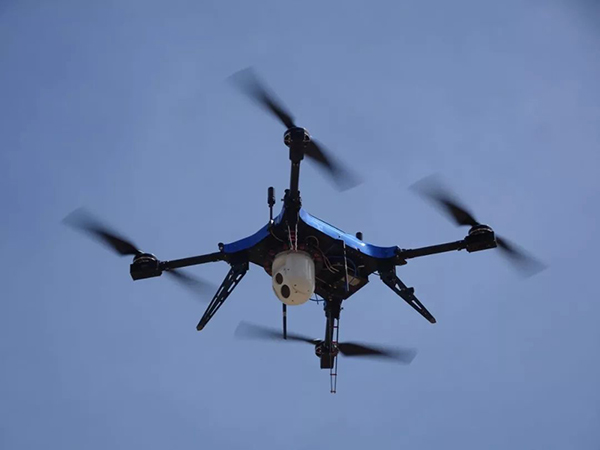

Photoelectric pod is the core equipment of UAV. Photoelectric pod is generally composed of camera, signal processing unit, image compression unit, stable platform unit, etc. It has the function of taking photos and videos, and can realize all-day search, identification, tracking and other functions. Optional laser range finder, mainly used for airborne, from high altitude to the ground for a large range, all-round video surveillance, detection and tracking. As the core component of the photoelectric pod, what model should be selected? SONY integrated color camera module authorized dealer — Shenzhen Xuan Zhan technology, after multi-channel, multi-directional data analysis, SONY FCB-EV7520 is currently one of the most selected HD cameras.

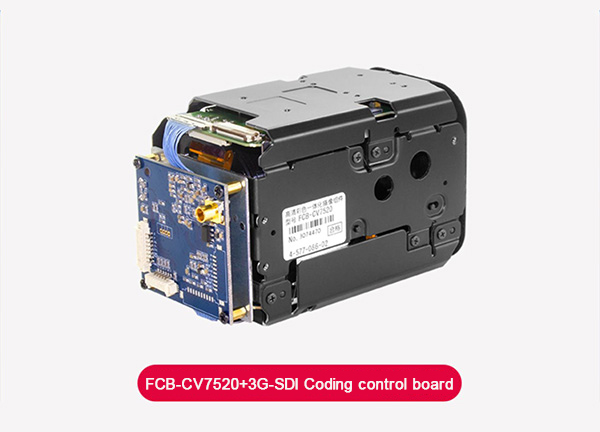

SONY FCB-EV7520 is equipped with 3G-SDI coding control board
SONY FCB-EV7520, built-in 2 million new Exmor R CMOS sensor, 30 times optical zoom, with optical anti-vibration, anti-fog, wide dynamic function, can cope with complex external environment, output high-definition picture. Starlight low light plus day and night switching function, greatly improve the ability to work at night. It is equipped with 3G-SDI or HDMI coding control board to strengthen the control of movement FCB-EV7520, which is convenient for data transmission and collection. It is equipped with special weight reduction bracket for UAV to reduce the weight of traditional shell and improve the endurance of UAV. According to the above analysis, SONY FCB-EV7520 can meet the complex requirements of photoelectric pod in different environments. Of course, if the requirements for stabilization function and optical axis consistency are relatively high, SONY has specially launched a new SONY FCB-EV9520L with high-definition integrated movement for the UAV industry, which is planned to be launched in the first half of 2023. Interested friends can keep an eye on it.

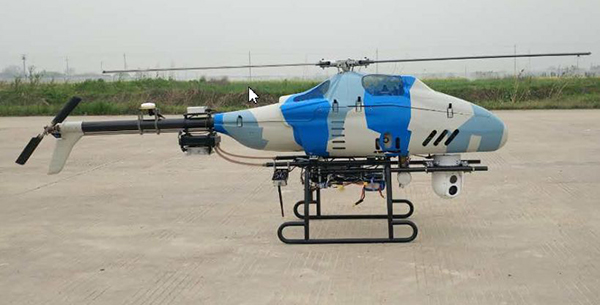

SONY HD camera FCB-EV7520 is installed at the appropriate position of the pan head of the UAV photoelectric pod. The video signal collected by the camera is transmitted to the graph signal transmitter installed on the UAV, and then the graph signal is transmitted to the receiving system on the ground, and then transmitted to the display device through SDI HDMI by the receiving system. The pilot can then monitor the aerial images taken by the drone’s camera in real time.
Photoelectric pods are widely used in target detection in power line patrol, forest fire prevention, geographic mapping, aviation surveillance, security monitoring, oil pipeline patrol and other industries.
In the field of fire control, UAV is equipped with photoelectric pod for forest fire prevention. By imaging the forest temperature distribution, it can timely discover and prevent and control the areas prone to fire.
In the field of environmental monitoring, real-time transmission of high-precision images of products can meet the characteristics of complex area detection, and timely provide environmental warning information and pollution source traceability information.
In the field of power line inspection, the product integrates a variety of optical sensors, infrared can effectively detect high voltage and ultra-high voltage overhead power line damage, broken strand and loose pressure wiring and other faults, visible light can detect power line foreign body winding, etc., using image fusion analysis and diagnosis method.
In the emergency field, the photoelectric pod equipped with SONY FCB-EV7520 integrated camera module has the function of fog penetration, which can clearly obtain first-hand information on the scene and is not affected by smoke and light intensity.
