Standard definition video surveillance upgrade SDI HD video surveillance system scheme

Although now high-definition, 4k has been widely known, but, in terms of the current domestic video surveillance industry, most of the analog camera with hard disk video recorder, this is because this scheme has been very mature and stable and high penetration rate, in the case of meeting the basic needs, if the upgrade of high-definition video system scheme, there must be higher cost investment. More and more high-definition video surveillance solutions are used, and now there is a low-cost solution to upgrade the high-definition surveillance system.

Standard definition video surveillance upgrade SDI HD video surveillance system scheme - Sony Camera Information - 1

The following standard definition upgrade SDI HD camera monitoring system scheme for you to briefly introduce.

The structure of the whole scheme is basically the same as the original analog camera and DVR structure, and the main update equipment can achieve the purpose of high-definition monitoring. The main steps are as follows:

1. Replace the original standard definition surveillance camera with HD-SDI HD camera.

Shenzhen Xuanzhan Technology provides ball machine standard clearance HD SDI camera scheme (SONY HD movement +SDI high-speed ball adapter board, please contact Xuanzhan for details)

2. If you want to transmit more distance through HD SDI optical repeater, click to view SDI transmission equipment.

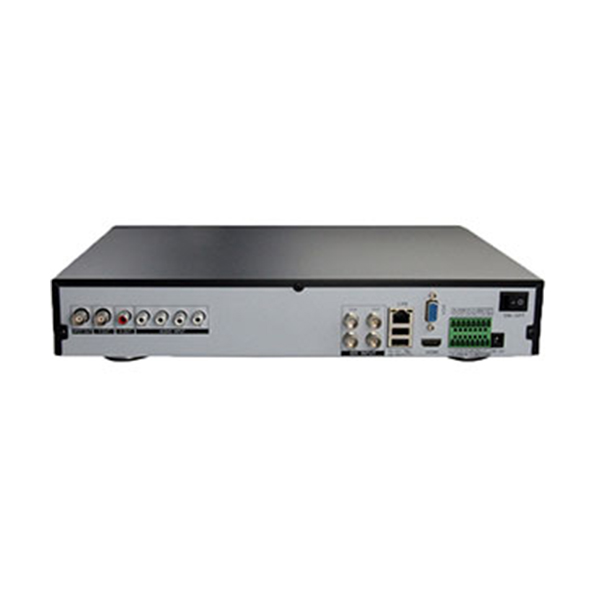

3. Replace the original DVR with HD-SDI high definition DVR, and pay attention to the input and output control to meet their own needs.

4. HD-SDI high-definition DVR has HDMI output interface, which can be connected to high-definition display screen for local display; It also supports the network access center management platform for remote monitoring and playback.



Standard definition video surveillance upgrade SDI HD video surveillance system scheme - Sony Camera Information - 2



After the above transformation, can realize the whole comprehensive monitoring high-definition, improve the image clarity; As long as the implementation of the replacement of HD-SDI HD camera and HD-SDI DVR, convenient transformation, save equipment costs; It is basically consistent with the original construction scheme and saves construction costs.

If you have more questions about HD-SDI HD camera, please feel free to contact us.
