As an excellent and professional video signal, SDI is widely used in digital audio due to its own convenience, and has more than 30 years of application history, becoming the audio-visual connection choice in broadcasting, audio-visual, medical, monitoring and many other industry markets, widely praised by market consumers and practitioners.
01 The era of 1080P
SDI has undergone several upgrades over the decades, mainly to improve signal quality and transmit more data. Among them, in the era of 1080p full HD video, it is divided into HD-SDI, 3G-SDI and other standards.
3G in 3G-SDI means that the data transmission rate of SDI signal is 3Gbit per second, and it can support the progressive scan of 1920×1080 resolution format of 60 frames per second, that is, 3G can support HD signal of 60 frames per second.

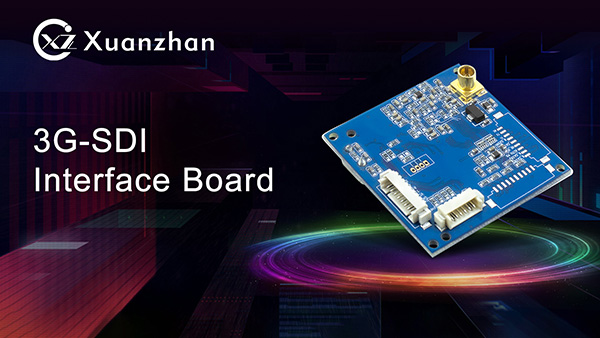

3G-SDI coding control board
02 The Challenge of 4K
With the innovation of semiconductor and video technology, the emergence of 4K video applications has put forward stricter requirements for SDI standards, because the pixel data amount of 4K video is four times that of 1080p full HD video, and it needs to meet the transmission requirements of dynamic 60 frames to a certain extent. Therefore, in order to transmit more data in the electronic components inside the device, The common standard of 12G-SDI came into being.
03 12G-SDI
By virtue of its own technical advantages and years of experience in SDI coding board development, Xuanzhong has developed [12G-SDI coding board] according to the general standard of 12G-SDI, so as to better meet the requirements of 4K-60 frame video transmission application.

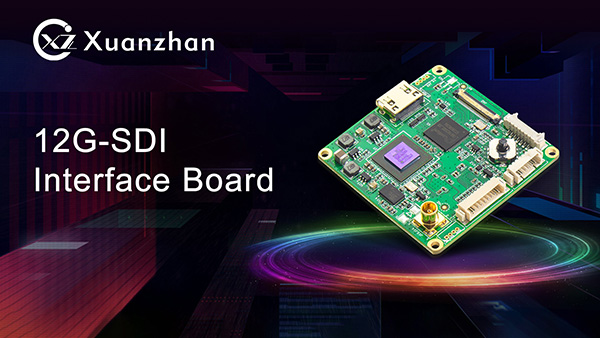

12G-SDI coded control board
The 12G-SDI coding board developed by Xuanzhan has the following features:
(1) Downward compatibility
Xuanzhan’s [12G-SDI coding board] can not only support 4K*60Hz signal acquisition, but also be downward compatible with 6G-SDI and 3G-SDI signals.
(2) Small volume
Because the number of signal connections is reduced by 4 times, [12G-SDI code board] can effectively simplify the cable connection and wiring system, eliminate the complexity of wiring, reduce the total weight of the cable, and reduce the possible fault points of signal connection.
(3) HD without delay
High coding efficiency, in the high compression ratio at the same time, but also to ensure high-quality image output effect, effectively prevent the occurrence of original image distortion phenomenon.

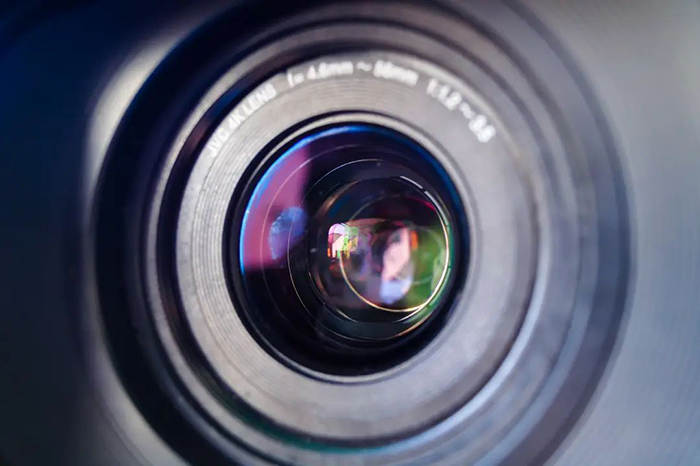

Automatic focusing camera
