The secret to efficient debugging is hidden in this compact module
During the secondary development and debugging of the high-definition movement module, engineers have been constantly seeking more efficient and cost-effective solutions. In recent years, an increasing number of engineers, when debugging high-definition movement modules, tend to choose the USB3.0 TYPE-C Video Capture Board independently developed by Xuanzhan Technology, a provider of high-definition video secondary development solutions. The reasons behind this choice are precisely the focus of our discussion today.
I. Why are USB3.0 TYPE-C Video Capture Board becoming increasingly popular?
High-speed transmission ensures real-time data flow

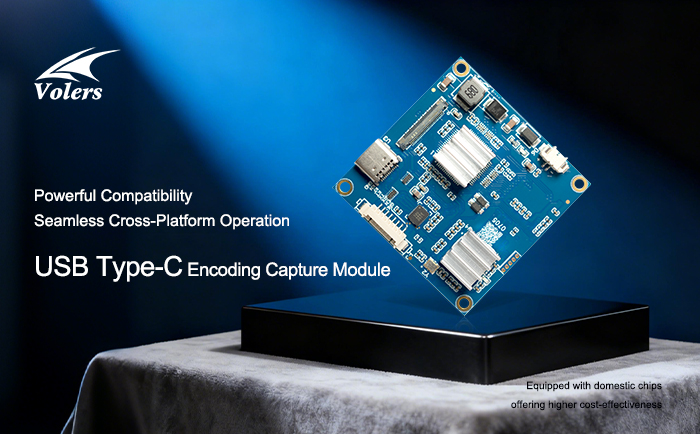

The USB3.0 TYPE-C Video Capture Board is developed based on the USB 3.0 standard, with a transmission rate as high as 5Gbps, and can easily meet the real-time transmission requirements of high-definition video signals. For engineers who need to monitor video streams in real time and conduct image analysis, high-speed transmission means lower latency and higher efficiency, providing a solid foundation for debugging work.
2. It adopts domestic chips, offering a higher cost performance
Unlike the USB3.0 video capture board, the USB3.0 TYPE-C Video Capture Board adopts domestic chips and a highly integrated design, integrating functions such as acquisition, encoding, and control into a single module. This reduces the connection requirements for external devices and offers more advantages in cost control, thereby providing users with a higher cost-performance ratio.
3. Blind insertion in both directions to enhance debugging efficiency
During the actual debugging process, engineers often need to repeatedly plug and unplug the connecting wires. The forward and reverse blind insertion feature of the Type-C interface makes this operation easy and simple, without worrying about the interface orientation issue, significantly improving work efficiency. Compared with the traditional USB-A interface, which requires confirming the direction each time it is plugged and unplugged, the design advantage of Type-C is particularly obvious in scenarios with frequent debugging.
4. Strong compatibility, seamless cross-platform operation
The USB3.0 TYPE-C Video Capture Board supports the three major operating systems of Windows, Mac and Linux. Most systems can recognize and use the camera module without additional drivers. This feature enables engineers to seamlessly switch between different development environments, ensuring the consistency and continuity of debugging work.
5. Highly integrated, more convenient
Unlike the traditional solution which requires self-writing of software and debugging of FBGA images, the USB3.0 TYPE-C Video Capture Board adopts a highly integrated solution. The software has been pre-written and the image processing has also been completed. This “out-of-the-box” feature significantly lowers the development threshold, allowing engineers to focus on debugging core business without spending too much time on basic setup.
6. Comparison of advantages in actual debugging
During the specific debugging process, the USB3.0 TYPE-C Video Capture Board demonstrated significant advantages. A single cable simultaneously transmits video signals and control signals, reducing the complexity of wiring. Supports real-time adjustment of camera parameters such as zoom, focus, and exposure through the TTL serial port.
Ii. Application Scenarios
1. Debugging of the unmanned aerial vehicle image system
In the debugging of the unmanned aerial vehicle (UAV) camera system, the compact size and high-speed transmission characteristics of the USB3.0 TYPE-C Video Capture Board can meet the strict requirements of the UAV for weight and real-time image transmission.
2. Debugging of medical imaging equipment
For medical imaging equipment, the USB3.0 TYPE-C Video Capture Board provides high-quality image acquisition capabilities, ensuring the clarity and authenticity of medical images and meeting the strict requirements of the medical industry for image quality.
3. Debugging of industrial inspection systems
In the debugging of industrial vision inspection systems, the stable performance and easy-to-integrate features make the USB3.0 TYPE-C Video Capture Board an ideal choice for engineers.
Iii. Future Development Trends
With the continuous advancement of technology, the USB3.0 TYPE-C Video Capture Board is also constantly being optimized and upgraded. Xuanzhan Technology has also developed a 4K USB3.0 TYPE-C Video Capture Board that supports 4K resolution, which can meet the acquisition requirements of higher-definition videos.
Meanwhile, the adoption of domestic chips not only reduces costs but also ensures the stability of the supply chain, which is an important piece of good news for domestic engineers.
Conclusion
The USB3.0 TYPE-C Video Capture Board, with its high-speed transmission, high cost performance, convenience, efficiency and stability, has become an ideal choice for the debugging of high-definition movement modules. It not only simplifies the debugging process and improves work efficiency, but also provides engineers with more powerful debugging capabilities.
