Sony FCB camera block
SONY FCB series HD integrated movement is widely used, in the application of choice may want to know more about the difference between the movement, in order to choose their own products. Next, Shenzhen Xuan Zhan technology has updated a series of SONY FCB series HD integrated movement parameters analysis of the article, hoping to bring help to everyone’s understanding and choice of SONY HD movement. This time for you to compare the analysis is SONY FCB-EV7100 and SONY FCB-EV7310.
The SONY FCB-CV7310 uses the same image processor as the SONY FCB-CV7100:1/2.8-inch Exmor CMOS, and both have 2.38 meixels of effective pixels.

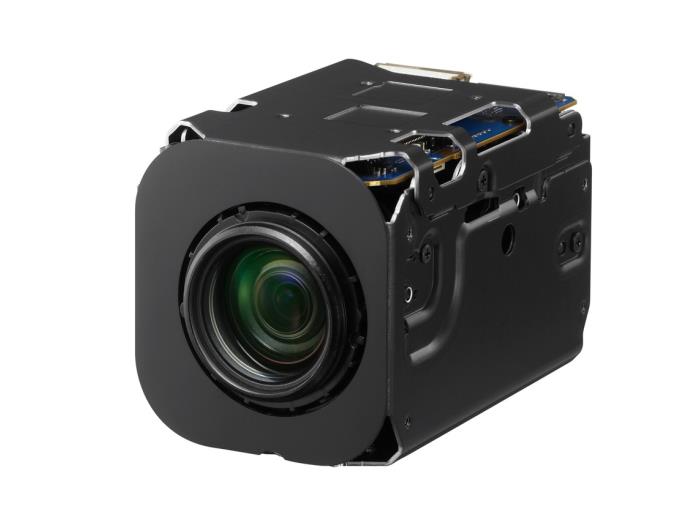

SONY FCB-EV7100
Differences between SONY FCB-EV7100 and SONY FCB-EV7310:
> FCB-EV7100 and FCB-EV7310 are different in the minimum illumination, the difference is not too large, please see the detailed parameter comparison below.
> On the zoom of the lens, the FCB-EV7310 is a 20x optical zoom, while the FCB-EV7100 is relatively small and a 10x optical zoom.
> Function, mainly wide dynamic function. The FCB-EV7310 does not have Wide-D function, while the FCB-EV7100 does have Wide dynamic function.
> The size and weight are very different. The FCB-EV7100 is smaller and lighter than the FCB-EV7310, which is mostly used in the UAV industry. The size of FCB-EV7310 is 50.0×60.0×87.9 mm and the weight is 270g, while the size of FCB-EV7100 is 45.6×48.8×78.0 mm and the weight is 210g.
In addition, we should remind you that both have no anti-shake function.
The specific difference between the two parameters can be viewed through the following comparison table of the two parameters organized by Xuan Zhan Technology.
| product model | SONY FCB-EV7310 | SONY FCB-EV7100 | |
| Minimum illumination(50%) | High sensitivity mode | Color : 0.1 lx
(F1.6, auto gain control on, 1/30 second ) |
Color : 0.35 lx
(F1.8, auto gain control on, 1/30 second ) |
| Normal mode | Color : 1.4 lx
(F1.6, auto gain control on, 1/30 second ) |
Color : 1.4 lx
(F1.8, auto gain control on, 1/30 second ) |
|
| Lens | 20x optical zoom | 10x optical zoom | |
| f=4.3mm(wide Angle end ) to 94.0mm(distal end ) | f=3.8mm(wide Angle end ) to 38mm(distal end ) | ||
| F1.6 to F3.5 | F1.8 to F3.4 | ||
| digital zoom | 12 x ( 240 times after using optical zoom ) | 12 x ( 120 times after using optical zoom ) | |
| Viewing Angle (level) | 1080p model | 59.5° ( wide-angle side ) to 3.3° ( distal ) | 67.0° ( wide-angle side ) to 7.6° ( distal ) |
| 720p model | 59.5° ( wide-angle side ) to 3.3° ( distal ) | 67.0° ( wide-angle side ) to 7.6° ( distal ) | |
| sd model | 44.6° ( wide-angle side ) to 2.5° ( distal ) | 50.3° ( wide-angle side ) to 5.7° ( distal ) | |
| Minimum object distance | 10 mm ( wide end ) to 1000 mm( distal end )
(Default : 300 mm) |
10 mm ( wide end ) to 800 mm( distal end )
( Default : 320 mm) |
|
| Wide-D*2 | NO | YES | |
|
Dimensions (W × H × D) |
50.0×60.0×87.9 mm | 45.6×48.8×78.0 mm | |
| Weight | 270 g | 210 g | |
