FCB-EV7520 connect HDMI interface board Operation steps:
I. Material preparation
1. SONY camera FCB-EV7520
2. HD HDMI interface board
3. 16Pin main transmission line
4. LVDS wiring
5. HDMI cable
6. DC12V power supply and power cord
7. support HDMI output display or TV

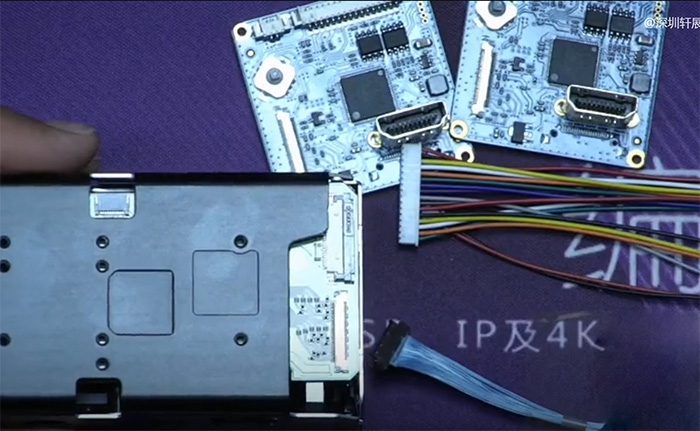

FCB-EV7520 connection HDMI interface board material preparation
Two, FCB-EV7520 and HDMI interface board connection steps
1. LVDS cable is connected with camera FCB-EV7520
The gold finger of the LVDS cable faces up and pushes the LVDS interface of the SONY camera FCB-EV7520 in parallel. Both ends of the cable should be parallel to the interface, and the gold finger should not be exposed.
2. LVDS cable is connected to HDMI coding board
The other end of the LVDS cable is connected to the HDMI interface board in the same way as in step 1;
3. Connect the HDMI interface board to the power supply
Connect the prepared DC12V 1A power cord to the HDMI interface board. The note here is that the voltage of the power supply cannot exceed 12V, which may damage the interface board, and the current needs to be above 1A;
4. Connect the HDMI interface board to the HDMI cable
Connect the prepared HDMI cable to the display and HDMI interface board respectively, and wait for a while before the signal is displayed;
5. Simple operation after connection
The same as other interface board operation, can be operated by the five-way button on the interface board, long press 5 seconds to bring up the menu, and then through the five directions to control the SONY camera FCB-EV7520 menu, in order to achieve the control of the camera FCB-EV7520 keys.

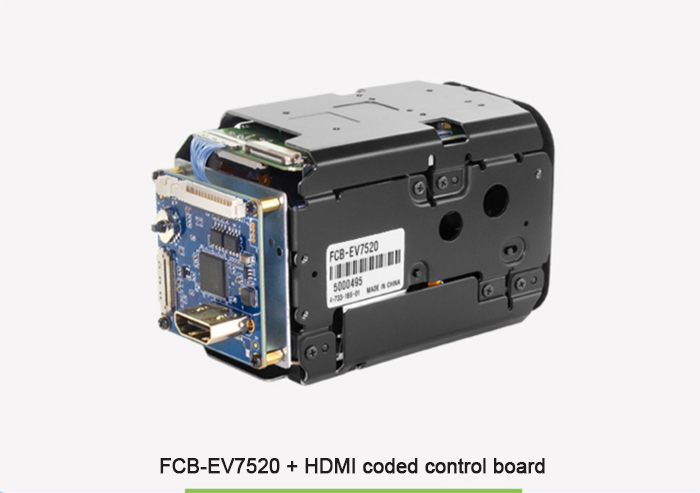

SONY FCB-EV7520 connects to the HDMI interface board
