Digital electronic vaginoscope Solution is the fourth generation of high-tech digital imaging system integrating modern digital electronic technology and computer technology.
Through the high-definition camera to enlarge the examination site, the computer real-time clear image of the examination site displayed on the computer monitor, its high quality light source and high magnification of the clear image can identify very small lesions. The doctor can observe the lesion on the computer monitor, which is easy to operate and can be used for both diagnosis and treatment.
What practical solutions will Xuanzhan Technology, as the official authorized agent of SONY, and 15 years (by March 2023) of video product secondary development experience, bring to the Digital electronic vaginoscope solution industry? I hope you can find the ideal Digital electronic vaginoscope Solution here.
Digital electronic vaginoscope Solution (I) : SONY FCB-EV7520 with USB3.0 interface board
1. Main components
(1) SONY FCB-EV7520
(2) USB3.0 interface board
(3) LVDS line
(4) USB3.0 cable
(5) Computer (USB external)

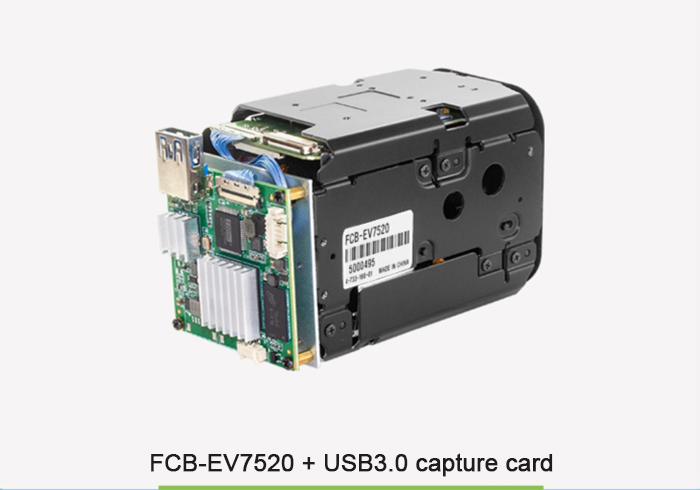

FCB-EV7520+USB3.0 interface board
2. Plan implementation
FCB-EV7520 is a SONY HD autofocus camera movement module, using 1/2.8 TYPE Exmor R CMOS sensor and 30x optical zoom lens, 1080p/60fps full HD output, with wide dynamic, fog through, anti-vibration, 2D&3D intelligent noise reduction, high highlight suppression, Star level low illumination and other functions, can be in the complex environment, the output of a clearer high-definition picture.
FCB-EV7520 automatic focus camera movement, through LVDS cable, connect the USB3.0 interface board independently developed by Xuanzhong Technology, and then connect the USB3.0 interface board to the computer through USB3.0 cable (USB3.0 cable can be made into a composite cable, hidden in the tube, beautiful and clean), can automatically identify the movement HD video format, The images captured by the FCB-EV7520 camera are immediately displayed on the computer screen, supporting various frame rates of 720P 1080I 1080P.
After the USB3.0 interface board is connected to the computer to establish communication, the USB serial port control signal can directly control the FCB-EV7520 camera magnification and reduction of various functions. Of course, you can also use the serial port external remote control or RS-232, RS485 and other control equipment, to achieve the control of FCB-EV7520 camera.
Digital electronic vaginoscope solution
The external remote control can be developed into wired or wireless according to the user’s needs, the number of keys is not limited, can control the FCB-EV7520 camera zoom in and out and other functions, in addition, it can also be connected with the external foot switch, mainly to achieve the camera freezing and photographing functions.
For the secondary development of video products, Xuanzhan Technology has rich practical experience, and can assist you to formulate the electronic colposcope solution you want. If you think it is not perfect enough, you can first read the following two solutions before making a decision.
SONY FCB-EV7100 with 3G-SDI interface board, Digital electronic vaginoscope solution (II)
SONY FCB-ER8530 with 4K-HDMI interface board, Digital electronic vaginoscope solution (III)
< To be continued >
