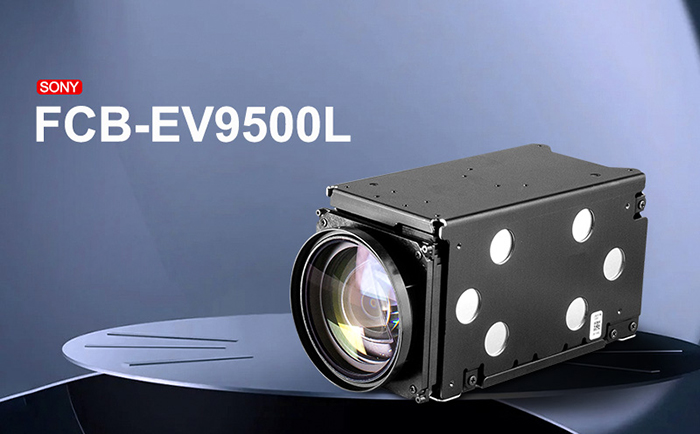

In the face of the weight limit of DRone-mounted equipment, the application of the SONY FCB-EV9500L as a large-weight high-performance camera module is undoubtedly a challenge, and its weight reaches 439 grams. With its powerful performance and clever design, it has successfully integrated into the drone field, and Ruiloog senior engineer Danny Wong discusses it with you.
1. high-definition picture quality and detail capture
High resolution: The SONY FCB-EV9500L uses a 1/1.8 Starvis™ CMOS sensor with a resolution of up to 4.17 million pixels to capture delicate and clear images.

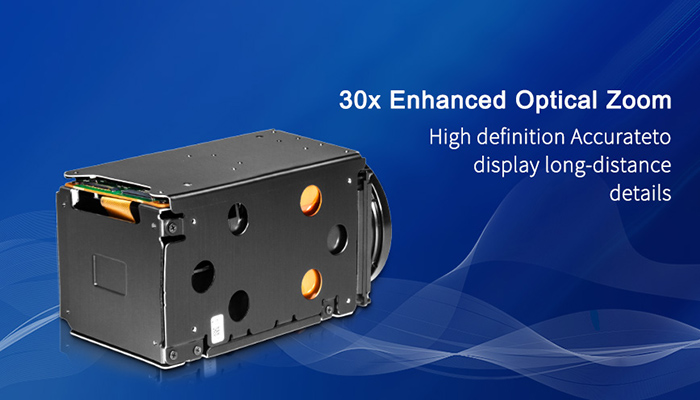

30x optical zoom: Combined with 12x digital zoom, the UAV can still obtain a clear monitoring picture at a distance, meeting the high requirements for clarity and detail capture in high-altitude shooting.
2. powerful image processing capabilities
Fast autofocus: SONY zoom camera module, known for fast autofocus, FCB-EV9500L has fast autofocus function, using high-speed, accurate focusing algorithm, can quickly lock and track the target to ensure image clarity and accuracy.
Super image stabilization: SONY FCB-EV9500L built-in gyroscope sensor can detect the multi-dimensional jitter information of the camera in real time, suppress and reduce jitter through a larger correction area, and provide two anti-jitter modes of “Super” and “Super+” to ensure that the output of clear and stable images in the environment of intense jitter or twisting.
Light treatment:
Low light environment: with excellent low light performance, color images can still be output at 0.009Lx low light, and the lowest light can reach 0.00008Lx, making the drone in the dusk, dawn, night or dark light environment can also present a clear and vivid picture.
Strong light environment: With high highlight suppression and point light source avoidance function, it can ensure that the highlighted area of the image will not be overexposed in a strong light environment, retaining more detail and layer.
Brief summary
SONY FCB-EV9500L with 1080P full HD picture quality, 30x enhanced optical zoom capability and powerful image processing capabilities, has shown significant advantages and application value in the field of drones. But how can 439 grams of hard damage be overcome?

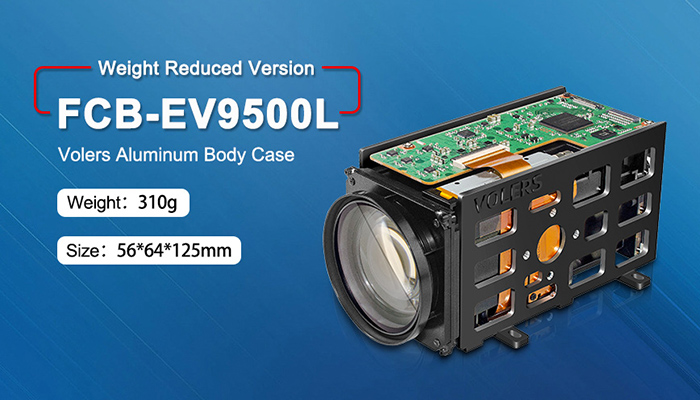

3. FCB-EV9500L weight reduction version
For the FCB-EV9500L heavy weight of the hard injury, Ruiloog senior engineer Danny Wang, specially developed its “weight reduction version” for the more stringent weight requirements of the industry, and successfully reduced the weight to “310g”. This remarkable weight loss achievement not only reflects a technical breakthrough, but also fully demonstrates Danny Wang’s deep understanding of user needs. On the basis of maintaining the original high performance, the camera after weight reduction is more convenient to carry and operate, and can better adapt to the high intensity needs of the UAV field.
After weight reduction, the FCB-EV9500L can not only have a wide range of application scenarios in the field of unmanned aerial vehicles, such as UAV aerial photography, inspection, mapping, rescue, etc., but also play its unique advantages in many fields. Such as medical, field cameras, remote teaching, industrial testing and other fields.
4. Video output scheme
In terms of video output scheme, SONY FCB-EV9500L collocation is also relatively flexible, drone users can choose 3G-SDI, network, HDMI and other interface output according to their needs, in order to achieve better video output effect and application value.
To sum up, SONY FCB-EV9500L applied to the UAV industry provides strong support for the UAV field through the advantages of high-definition picture quality, powerful image processing capabilities, weight reduction and flexible video output solutions.
