Sony FCB camera block
View
This product is specifically engineered for seamless integration with Sony FCB 4K ultra-high-definition block cameras, while also ensuring compatibility with a wide range of
third-party 4K UHD block cameras that adhere to standardized interface specifications. It achieves stable connection with the camera module via an ultra-thin coaxial cable,
ensuring efficient and reliable data transmission.
The product features powerful multi-interface video output capabilities: after users configure the camera’s video format, it can simultaneously output 4K UHD video formats via HDMI Compatible, network interface, and USB 3.0 interface, meeting transmission needs across diverse scenarios.
This product fully supports OSD functions. Leveraging efficient real-time video transmission technology, it enables fast and accurate real-time video transmission, ensuring that video data can be quickly and precisely
delivered to the target device.

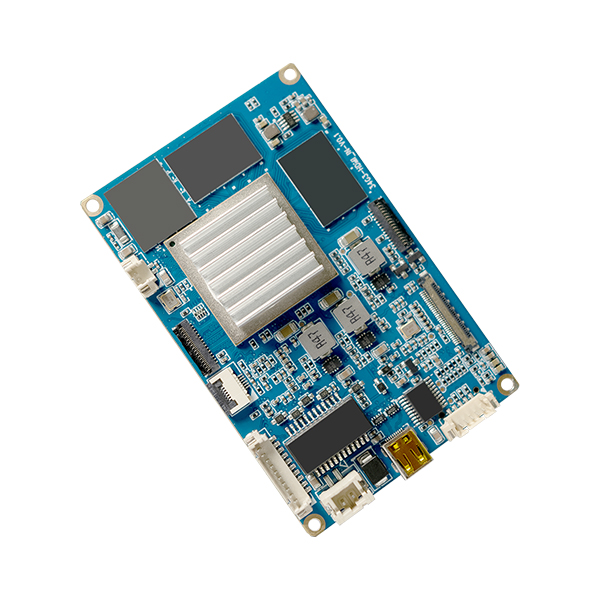

This 4K P60 IP interface board comes standard with built-in basic AI functions and supports in-depth expansion of AI capabilities: After authorization by our company, users can flexibly integrate their self-developed
AI algorithms to quickly extend customized functions such as intelligent analysis and intelligent tracking.
This product is precisely tailored to professional scenarios like security monitoring and industrial inspection, and can fully meet the core needs of industry-level intelligent applications.
In addition, it comes with a comprehensive SDK (Software Development Kit), which facilitates secondary development and function expansion by users, catering to diverse application requirements.
Features
1. Rich Interface Configuration
• Offers diverse application interfaces including two-way audio, USB, TF card, and alarm input/output.
• Supports MIPI or BT656 thermal imaging camera access, transmitting infrared video signals to the backend via sub-stream.
• Audio interfaces: 1 input (level 2Vp-p, impedance 1kΩ, supports microphone connection); 1 output (impedance 16Ω, 30mW output power, compatible
with headphones or amplifiers).
• Equipped with 1 TTL serial port for direct control of theca mera and encoding board; the IE interface supports serial potr transparent transmission,
allowing command input to control the camera directly on the interface.
2. Encoding & Resolution
• Supports switching between H.264 and H.265 encoding formats.
• Supports up to 2160P60 resolution for display, storage, and transmission, with full OSD function enabled.
• HDMI Compatible video output format can be freely configured via commands, up to 4KP60.
3. Protocol & Network Functions
• Supports Web28181 (optional), ONVIF protocols, compatiblew ith multiple client software and NVRs (Network Video Recorders).
• Supports national standard OTA online upgrade.
• Can output broadcast-grade network video streams with a maximum bitrate of 100Mbps, and features a center crosshair command call function.
4. Intelligent Alarm & Storage
• Supports motion detection alarm function, enabling alarm linkage with frontend storage, frontend storage playback/download.
• After a motion detection alarm is triggered, it supports center alerts and screen pop-up linkage, while also supporting image capture.
