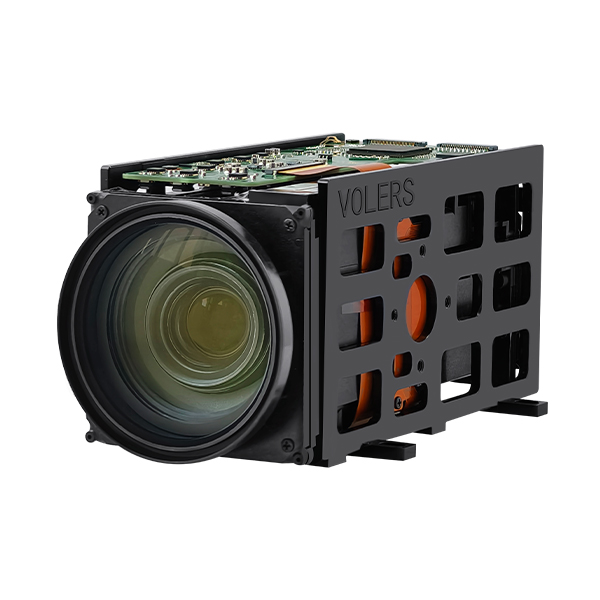

The FCB-ER9500 Weight-Reduced Version is a lightweight camera module secondarily developed by Ruiloog Electronic — an officially authorized distributor of Sony (China) and a professional high-definition video secondary development solution provider. Built based on the original Sony FCB-ER9500, it retains core performance while reducing overall weight, making it perfectly suitable for load-sensitive scenarios such as drones, small pan-tilts, and handheld devices.
Ⅰ. Why Launch the Weight-Reduced Version
The original Sony FCB-ER9500 camera module weighs 464 grams, which is relatively heavy among Sony integrated camera modules.
Such weight brings obvious limitations in many application scenarios. For environments with strict weight restrictions, including drone mounting, robot visual navigation, handheld devices, small pan-tilts, and portable inspection equipment, the original standard model cannot meet actual application requirements.
Ⅱ. Weight Reduction Solution
Ruiloog Electronic has redesigned the original metal housing of the Sony FCB-ER9500 into a customized aluminum alloy enclosure.
The weight is successfully reduced from the original 464g to 310g, enabling the camera module to better adapt to scenarios with high lightweight requirements.
The weight-reduced FCB-ER9500 still adopts the original core components of Sony FCB-ER9500, including the image sensor, lens, and image processing circuit. It fully maintains the original core specifications such as high-definition image quality, low-light performance, and zoom capability.
Ⅲ. Product Advantages
1. Reduce Load Burden
The lightweight FCB-ER9500 effectively lowers the load pressure of the device and improves overall system performance.
2. Enhance Stability and Controllability
In scenarios requiring fast movement and frequent shooting angle adjustment, such as robot visual navigation and drone aerial photography, the lighter weight helps reduce equipment jitter and ensures clear and stable imaging.
3. Expand Application Scope
It is not only applicable to traditional video surveillance and intelligent transportation fields, but also widely used in emerging industries with extremely strict weight limits, including drones, robots, and underwater robots.
Features
Sensor: 1/1.8″ STARVIS CMOS sensor (Approx. 8.39 million effective pixels)
Max Frame Rate: 2160p/60
Output Interface: 4K HDMI
Zoom: 25× optical zoom, 12× digital zoom
Lens: 6.5mm ~ 162.5mm, F1.6 4.8
Output Resolution: 3840×2160, 1920×1080, 1280×720
Minimum Illumination: 0.028 lx (ICR OFF)
Minimum Illumination: 0.00016 lx (ICR ON)
Horizontal Viewing Angle: Approx. 59.0°
Image Stabilization: Super Image Stabilization (Super / Super+)
Other Functions: High definition, high photosensitivity, high sensitivity, wide dynamic range, optical axis consistency, infrared-sensitive color mode, spot auto focus / auto exposure / auto white balance, highlight suppression, point light elimination, digital noise reduction, motion detection, privacy masking
Dimensions: 76.0 × 62.0 × 125.0 mm
Weight: Approx. 310 g
