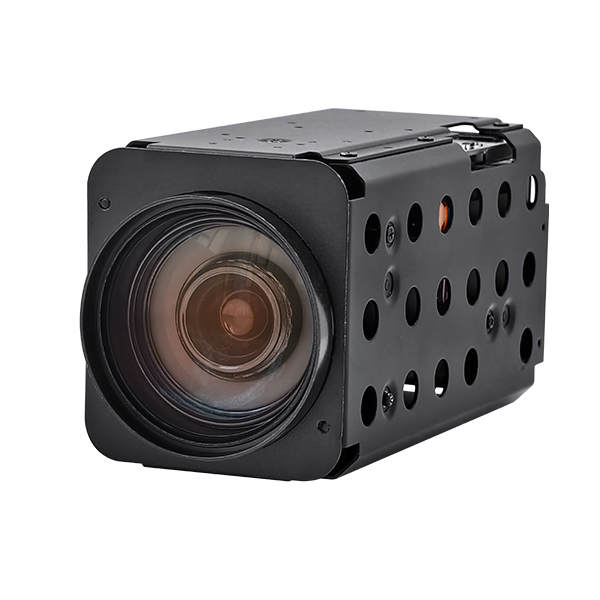

VRS-HD5365 2MP 60fps Global Shutter 36X Optical Zoom Camera Module

View

The VRS-HD5365 is equipped with up to 36x optical zoom and supports Full HD resolution.It provides excellent image quality whether during the day or night,thanks to the built-in ICR (Day to Night Conversion)technology,WDR (Wide Dynamic Range)and DNR (Digital Noise Reduction,2D+3D)functions. In addition,it also has a privacy mask function to protect the privacy of the subject when needed.

In terms of digital output,the camera supports LVDS (Low Voltage Differential Signaling)and EX-SDI (Extended Serial Digital Interface)formats.In terms of analog output,it supports HD-Analog(high-definition analog)and CVBS (composite video broadcast signal,for testing purposes only)formats

The VRS-HD5365 also supports OSD (on-screen display)function,allowing users to customize the settings menu according to their needs.At the same time,it also has a motion detection function that can automatically capture moving objects.To ensure the stability of the picture during shooting,the camera is also equipped with a digital image stabilizer (DIS).

Features

• 1/2.3″ Sony Global shutter CMOS sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 36x Optical Zoom(6mm ~ 216mm) & 32x Digital Zoom
• F1.5(wide) ~ F4.8(tele)
• Day & Night (ICR)
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : LVDS, EX-SDI, CVBS

Volers VRS-HD5365 Global shutter Camera Block Product Specs

Model	VRS-HD5365
Image Sensor	1/2.3" Sony Starvis CMOS Sensor
Total Pixels	1,936 (H) x 1,226 (V) = 2.37M Pixels
Active pixels	1,936 (H) x 1,216 (V) = 2.35M Pixels
Scanning system	Progressive Scan
Sync. System	Internal
Resolution	Digital : 1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 Analog : 700TVL
Min. illumination	Color(1/30s, 48dB) : 0.3 lux, BW(1/30s, 48dB) : 0.01 lux Color DSS(1/2s, 48dB) : 0.06 lux , BW DSS(1/2s, 48dB) : 0.002 lux
Video Output	HD : LVDS, EX-SDI Analog SD : CVBS(without WDR)
S/N Ratio	more than 50dB (AGC off)
Lens
Lens type	36x Day & Night Zoom Lens
Zoom Ratio	Optical 36x, Digital 32x Zoom
Focal Length	f = 6.0mm ~ 216mm
Aperture Ratio	F1.5 (wide) ~ F4.8 (tele)
Angle of View (D, H, V)	Wide	59.13°	52.62°	31.08°
	Tele	2.24°	1.95°	1.10°
Function
Trigger Polarity	Active Low / Active High
Trigger Delay	Trigger Delay
Strobe Polarity	Active Low / Active High
Strobe Delay	Ext-Trigger : 0 ~ 255.9ms / Free run : 0 ~ (1V period – Width)ms
Strobe Width	Ext-Trigger : 0 ~ 255.9ms / Free run : 0 ~ (1V period – Delay)ms
Shutter Speed(Ext-trigger)	1/30(25) ~ 1/20,000 sec
AGC(Ext-trigger)	0 ~ 10 steps
Iris(Ext-trigger)	Close ~ F1.5
Day&Night(Ext-trigger)	Day / Night
AF Mode	Auto / One Push / Manual
Min. Distance	0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh	One Push / 1 ~ 10Day
Digital Zoom	Off / MAX 2x ~ 32x
Exposure	Auto / Iris.P / Shut.P / Manual
Digital Slow Shutter (DSS)	Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Brightness	0 ~ 14 steps
BACK LIGHT	Off / BLC / HLC
Night Function Set	Off / On
White Balance	Auto / One Push / Manual / Indoor / Outdoor
DNR	Auto / Off / Low / Middle / High
Mirror	Off / H / V / H&V
Sharpness	0 ~ 10 steps
Defog	Off / On(Auto / Manual)
Privacy Mask	Off / On (8 points)
Motion Detection	Off / On (3 points)
Defect Detection	Off / On
System	NTSC / PAL
Communication	Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language	English / Simplified Chinese / Traditional Chinese / Japanese
Power Source	9V to 15V DC
Power Consumption	500mA
Operating Temperature	-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature	-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension	55.6(W) x 64.0(H) x 124(D)
Weight	Approx 416g
