FCB-EV7520|how SONY hd camera module connection MIPI interface board

Many SONY FCB Camera users think that MIPI interface board can only be used with SONY FCB-EV9500M, in fact, after the research and development of Xuanzhan technology technical team, MIPI interface board can be used with SONY FCB HD camera, Take SONY FCB-EV7520 as an example to tell you about the secondary development solution of SONY HD camera with MIPI interface board.



1. SONY FCB-EV7520 connecting MIPI interface board

The SONY FCB-EV7520 is connected to the MIPI interface board through a very thin coaxial cable. The steps are very simple:

Step 1: Connect the LVDS wire to the SONY movement FCB-EV7520;

Step 2: Connect the LVDS line with the LVDS interface of the MIPI interface board;

Step 3: Connect the network of MIPI interface board with 6Pin line;

Step 4: Connect the power supply of MIPI interface board with 2Pin power cord;

SONY FCB-EV7520 can output HD video signals over the network without any configuration after being connected to the MIPI interface board.



FCB-EV7520|how SONY hd camera module connection MIPI interface board - Company News - 1

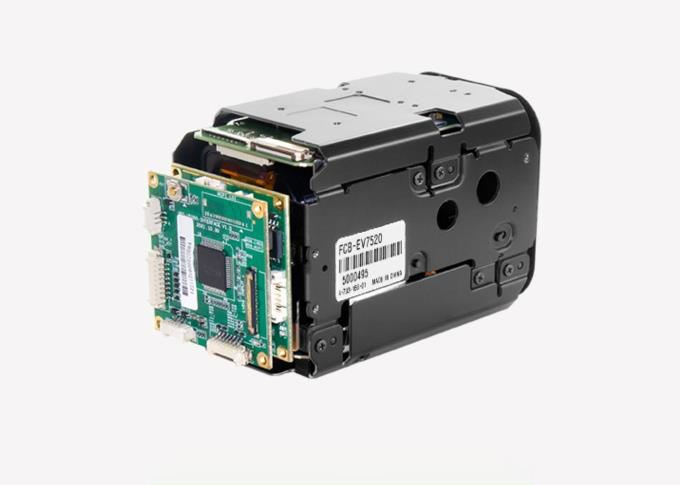

SONY FCB-EV7520 with MIPI interface board



2, SONY FCB-EV7520 with MIPI interface board advantages and characteristics:

MIPI interface board uses intelligent coding compression technology and integrated audio acquisition technology to minimize compression loss, so that it can save more transmission bandwidth and storage space at lower bit rate. SONY FCB-EV7520 can realize long-distance transmission and real-time video browsing and configuration functions through browser or client software, can realize a large range of monitoring, and the image is clear, delicate and real, rich in color.



3. Application of SONY FCB-EV7520 with MIPI interface board:

FCB-EV7520 with MIPI interface board can seamlessly connect to ball machine, cloud head and other network equipment, widely used in residential roads, schools, parks, squares and other large monitoring scenes with high definition picture quality requirements.



4. SONY FCB-EV7520 with MIPI interface board

1, MIPI interface board support network serial port transparent transmission, you can directly control the camera through the Internet Explorer interface, but also control the third party device (need to establish a physical serial port connected to the coding board);

2, with AI intelligent function, can realize face capture, license plate capture, human shape recognition, license plate recognition, boundary detection, wandering detection, personnel focus detection and other intelligent functions (optional function);

3, the highest resolution up to 2 million pixels (1920×1080), the maximum output full HD 1920×1080@60fps real-time image;

4, support H.265/H.264/MJPEG video compression algorithm, support multi-level video quality configuration;

5, support 1 audio input and 1 audio output;

6. Support WiFi and 4G function module expansion;

7, support up to 256G MicroSD/SDHC/SDXC card storage;

8. Support ONVIF and GB/T28181 access;

9, small size, low power consumption, convenient to connect to the ball machine, head.



FCB-EV7520|how SONY hd camera module connection MIPI interface board - Company News - 2

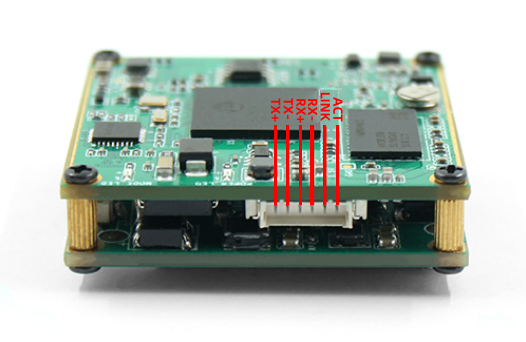

MIPI interface board
