SONY FCB-EV9520L is a high-performance full HD fast autofocus camera module that integrates SONY’s advanced image processing technology and high-quality optics to provide users with superior image quality and flexible zoom capabilities. The module is widely used in monitoring, UAV equipment, industrial inspection, medical imaging and other fields, meeting the needs of image capture in various complex scenes.

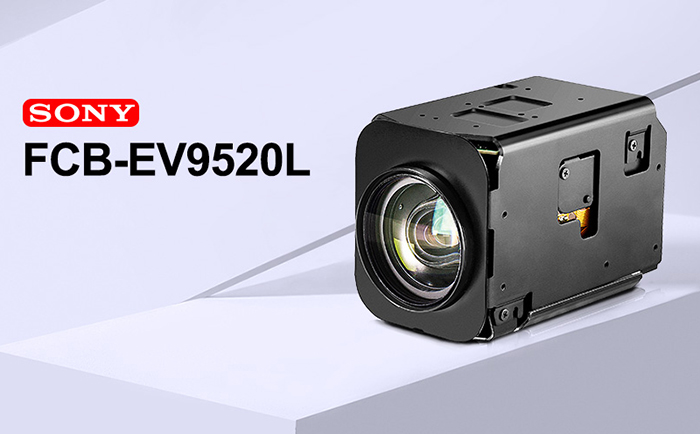

FCB-EV9520L
First, the main functional characteristics
1, high definition:
SONY FCB-EV9520L supports 1920×1080 full HD resolution to ensure fine and clear images, and the video output can reach up to 1080P/60fps, ensuring smoother and more natural video.
Effective pixels up to 2.13 million, can capture more detailed information.
2, zoom capacity:
The SONY FCB-EV9520L has 30x optical zoom capability, making it easy to capture distant targets.
Digital zoom is combined with optical zoom to provide users with a wider zoom range.
3. Image processing technology:
SONY FCB-EV9520L uses the latest ISP software and 1/2.8 “STARVIS2 CMOS sensor to effectively improve the ability to cope with a variety of complex external environments and output more realistic color images.
The SONY FCB-EV9520L supports area auto exposure, area auto focus and area auto white balance, which can be adjusted individually according to the needs of different areas in the image to ensure better image quality.

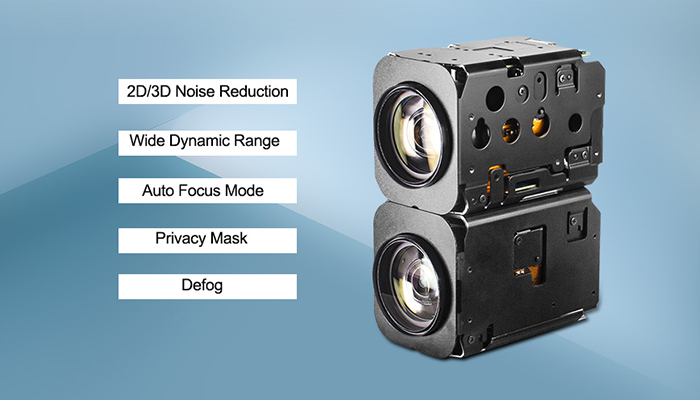

SONY FCB-EV9520L and FCB-EV7520
Low light environment adaptability:
The SONY FCB-EV9520L can still output color images even at low illuminance of 0.009lx, with a minimum illumination of 0.00008lx, meaning critical information can be captured in near darkness.
Image stabilization:
By working together with sophisticated algorithms and advanced sensors, the SONY FCB-EV9520L can effectively reduce image blurring caused by vibration, twisting and other factors from horizontal, vertical or central rotation. Ensure the stability and smoothness of the captured picture.
It has “S” and “S+” modes to cope with different jitter levels.
Wide dynamic and transparent fog:
In extreme environments, when particularly bright and particularly dark appear at the same time, or in hazy weather, the SONY FCB-EV9520L can cope well with wide dynamic and fog transmission functions, and can output clear, uniform color images.

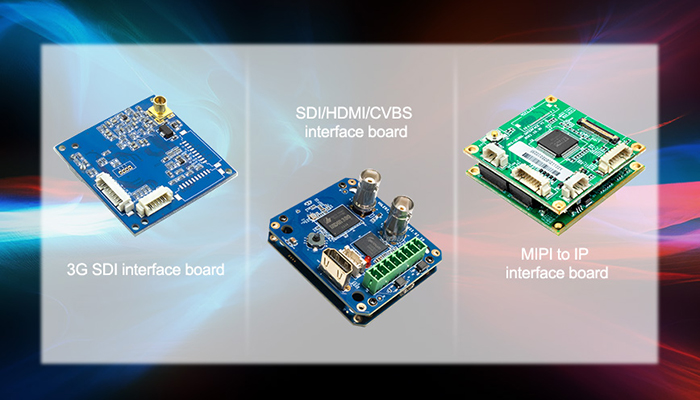

Second, output different signals
1. Output 3G-SDI signal
SONY FCB-EV9520L connects to 3G-SDI mini coding control board through LVDS line, automatically identifies and outputs 3G-SDI signals, which can achieve stable output and real-time transmission of camera HD signals, which is also a more popular solution for the UAV industry.
2. Output SDI/HDMI/CVBS simultaneously
SONY FCB-EV9520L with 3-in-1 coding control board, can synchronously output 3G-SDI, HDMI, CVBS three kinds of video signals, to meet the needs of different devices for video signals, especially suitable for security monitoring industry, interconnect with different interface devices.
3, output network signal
Connect to the LVDS interface of the MIPI to IP control board (the MIPI interface is mainly connected to the SONY FCB-EV9500M integrated camera), can convert the video of the SONY FCB-EV9520L camera into network video signals, and can directly control the camera through the network serial port transparent transmission channel and network IE interface. This control method is not only easy to operate, but also flexible.
This solution also enables video signals to be remotely transmitted and monitored in real time over the network, making it an ideal solution for traffic monitoring, remote video conferencing and teaching systems.
Third. Application scenarios
Thanks to the moderate fuselage size, powerful hardware composition and excellent performance of SONY FCB-EV9520L, as well as a variety of different interface output schemes, it is widely used in surveillance, drones, video conferencing, industrial testing, medical, Marine operations, laser gun tree cutting and other industries.
