The zoom system constitutes the core optical architecture of an integrated camera block. Two mainstream solutions dominate the current market: External (Trombone) Zoom and Internal (Power) Zoom. Their fundamental difference lies in mechanical movement modes, which directly impact optical stability and engineering adaptability. This also serves as a critical dividing line separating consumer-grade camera blocks from industrial professional-grade counterparts.
I. Core Differences Between Internal Zoom and External Zoom
| Comparison Item | Internal Zoom | External Zoom |
|---|---|---|
| Zoom Camera | Lens groups travel along precision guide rails inside the barrel; barrel length remains constant | Front lens groups or barrel segments extend and retract entirely; barrel length changes with focal length |
| Center of Gravity Shift | Center of gravity stays nearly unchanged throughout zooming, benefiting payload balance and image stabilization for gimbals and pods | Center of gravity shifts noticeably forward at telephoto positions, disrupting balance of UAV pods and pan-tilt units |
| Optical Axis Consistency | Restricted by precision internal cams and guide rails; minimal optical axis drift for stable focus and exposure | Mechanical extension/retraction introduces slight wobble, causing optical axis offset at long focal lengths |
| Structural Cost | Sophisticated construction requiring high-precision rails and stepper motors; higher cost | Simple structure with low cost, widely used in entry-level or high-zoom portable devices |
| Typical Applications | High-end broadcast lenses, Sony FCB series | Consumer digital cameras, superzoom travel lenses |
II. Engineering Advantages of the Internal Zoom System on Sony FCB-ER9500

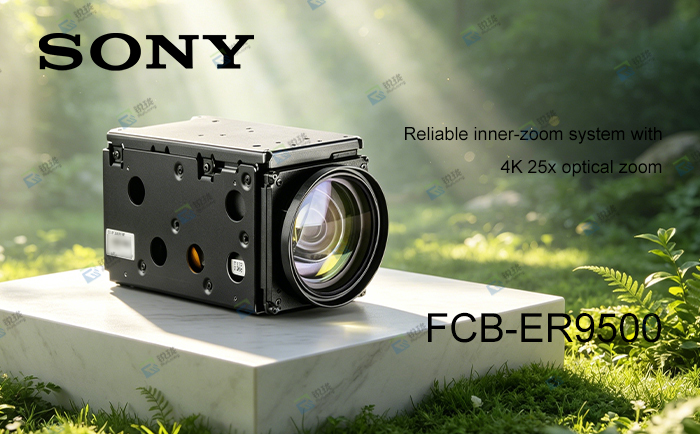

As a new-generation 4K/60p integrated camera module, the Sony FCB-ER9500 is equipped with a 1/1.8-inch STARVIS 2 CMOS sensor and 25× optical zoom. Its internal zoom design delivers remarkable engineering benefits for system integrators:
1. Fixed Form Factor with Zero Structural Interference
Adopting an internal zoom structure, the FCB-ER9500 maintains a constant barrel dimension of 56.0 × 64.0 × 125 mm. When integrated into UAV optoelectronic pods, medical surgical arms or industrial inspection heads, no extra clearance needs to be reserved for lens extension. This fundamentally eliminates jamming and structural interference risks common to external zoom designs, drastically simplifying structural design work.
2. Stable Center of Gravity Enhances Platform Stability
Since the center of gravity never shifts during zooming, UAV 3-axis gimbals require no rebalancing after zoom adjustments, and medical robotic arms are free from extra torque disturbances caused by focal length changes. This “silent zoom” feature of the Sony FCB-ER9500 is an essential prerequisite for stable imaging on high-precision dynamic platforms.

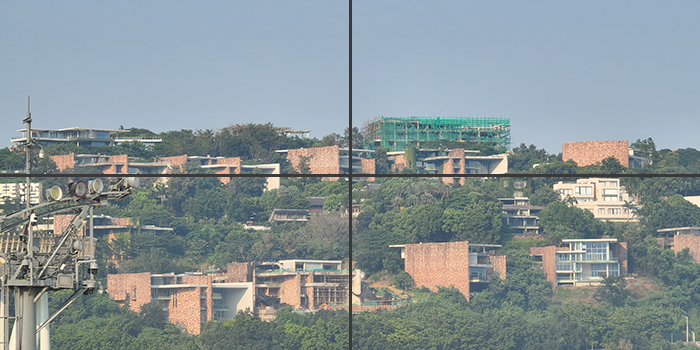

3. Superior Optical Axis Consistency Prevents Target Loss at Telephoto Distances
Supported by precision internal rails and cam mechanisms, the FCB-ER9500 maintains extremely low optical axis deviation across the full focal range from wide-angle to 25× telephoto. Focus and exposure transition smoothly, effectively avoiding edge aberration fluctuations and focus drift frequently seen on external zoom lenses at long focal lengths. It enables clear identification of tiny long-distance defects such as power line corrosion and PCB screen printing imperfections.
4. Smooth Controllable Motorized Zoom via VISCA
The FCB-ER9500 features a built-in stepper motor driving the internal zoom assembly, controllable via the VISCA protocol (TTL/CMOS 3.3V level). It allows precise adjustment of zoom speed and position with uniform, fluid zoom motion, fast focusing and no screen flickering. It is perfectly suited for high-quality video recording and remote linkage control with PTZ pan-tilt units.
Conclusion
Compared with the retractable structure of external zoom lenses, the internal zoom system of the Sony FCB-ER9500 eliminates multiple integration risks at the mechanical level via fixed dimensions, constant center of gravity, superior sealing performance and exceptional optical axis consistency. This not only demonstrates the superior hardware performance of premium industrial camera modules over standard external zoom alternatives, but also lays a reliable foundation for steady zooming and high-clarity imaging of UAV, medical and industrial equipment under complex operating conditions.
