Sony FCB camera block
As industry-classic 1080P HD camera blocks, Sony FCB-EV7520 feature core strengths including a 1/2.8-inch CMOS sensor, 30x optical zoom, ultra-fast auto-focus and lifelike color reproduction. Widely deployed in intelligent PTZ cameras, UAV optoelectronic pods, medical surgical cameras and industrial visual inspection equipment, they have long been recognized as highly reliable benchmark products across the industry.
With the iteration of imaging technology, Sony has officially discontinued the FCB-EV7520. As an officially authorized distributor of Sony (China), Xuanzhan Technology provides industry customers with a perfectly matched 4K upgrade solution: the Sony FCB-ER8530 4K UHD camera blocks, enabling low-cost, high-efficiency intelligent 4K upgrade for your devices.
I. Highly Compatible Form Factor, Minimal Engineering Modification Costs
The classic FCB-EV7520 boasts a compact body of 50.0×60.0×89.7mm and a lightweight weight of approx. 255g, catering to the miniaturized and lightweight installation requirements of UAV gimbals, medical devices and industrial inspection equipment.

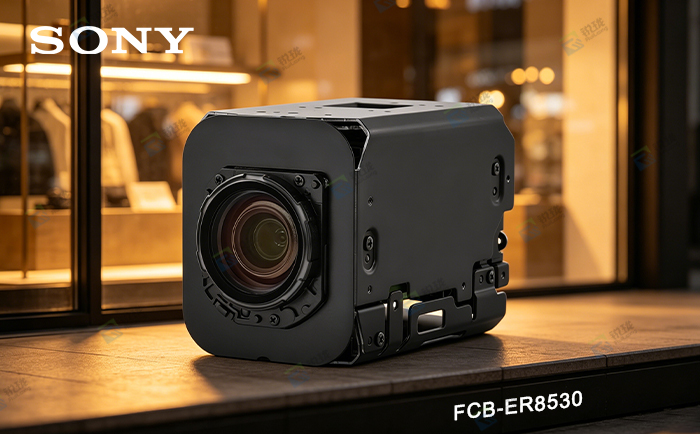

The FCB-ER8530 fully inherits the compact structural design of the legacy models. Measuring 50.0×60.0×93.0mm and weighing only 275g, it shares nearly identical overall appearance and mounting positions with the older versions. Equipment manufacturers do not need extensive structural adjustments, mold rework or assembly redesigns. Minor modifications alone deliver a leap from 1080P HD to 4K UHD imaging, greatly shortening project renovation cycles and cutting iteration expenses.
| Comparison Item | FCB-EV7520 | FCB-ER8530 | Core Replacement Advantages |
|---|---|---|---|
| Sensor Spec | 1/2.8″ Exmor R CMOS | 1/2.5″ Exmor R CMOS | Larger photosensitive area, higher light intake and superior image texture |
| Effective Pixels | Approx. 2.13MP | Approx. 8.51MP | 4x total pixel count, drastically enhanced detail rendering |
| Output Resolution | 1080P (1920×1080) @60fps | 4K (3840×2160) @30fps | 4x higher detail resolution, ideal for high-precision observation scenarios |
| Optical Zoom | 30x | 20x | Supported by native 4K resolution, 20x optical zoom delivers far finer details than 30x zoom on 1080P modules for long-range viewing |
| Digital Zoom | 12x | 12x | Identical parameters, consistent adaptability for zoom applications |
| Image Stabilization | Electronic Image Stabilization | Electronic Image Stabilization | Matching stabilization performance for steady footage during mobile shooting |
| Minimum Illumination | 0.01Lux (Color) | 0.75Lux (Color) / 0.4Lux (ICR Off) | Legacy model offers better low-light color sensitivity |
| Wide Dynamic Range | Supported | Supported | Excellent performance under backlight and alternating light/dark conditions with rich image layers |
| Native Interfaces | LVDS, CVBS | HDMI | Upgraded native interface; matched dedicated adapter boards support all output scenarios |
| Body Dimensions | 50×60×89.7mm | 50×60×93.3mm | Near-identical size requiring little structural rework, excellent engineering compatibility |
| Unit Weight | 255g | 275g | Comparable weight with no impact on lightweight UAV and portable equipment design |
II. Groundbreaking Image Quality: 4K UHD Eliminates Long-Range Detail Deficiencies
The legacy FCB-EV7520 only outputs 1080P full HD with limited pixel capacity. In long-distance inspection, micro-defect detection, high-definition evidence capture and precision medical imaging, the modules often suffer from missing details and blurred edges, failing to meet today’s high-precision industrial demands.
The upgraded FCB-ER8530 integrates a large 1/2.5-inch Exmor R back-illuminated CMOS sensor with 8.51 million effective pixels, supporting 3840×2160@30fps 4K UHD video output — 4 times the pixel volume of the 1080P legacy models. Leveraging Sony’s professional image tuning technology, it delivers authentic color reproduction and ample dynamic range.
Equipped with 20x optical zoom, the 4K native resolution delivers super-resolution zoom performance equivalent to the 30x zoom range of traditional 1080P modules. No pixel compression, blurring or detail loss occurs when zooming in, enabling precise capture of tiny targets and subtle features. Perfect for power grid inspection, industrial flaw detection, medical surgical imaging, security high-definition forensics and low-altitude surveillance, it fundamentally solves the core pain point of insufficient long-distance observation accuracy on conventional HD camera blocks.
III. Universal VISCA Protocol, Seamless Software Compatibility for Fast Mass Production
Compatibility is the core priority for equipment iteration and upgrade. The FCB-ER8530 fully supports Sony VISCA control protocol (TTL/CMOS 5V level), sharing highly compatible serial port command sets with legacy FCB-EV7520 models.
Customers’ existing control systems require no full redevelopment or major program restructuring. Simple adaptation and debugging enable seamless migration from 1080P to 4K devices, drastically reducing software R&D costs, shortening product upgrade cycles and accelerating equipment iteration and mass launch.
IV. Full Range of Matching Boards: One-Stop Secondary Development Solutions
With 17 years of specialized experience in video imaging secondary development, Xuanzhan Technology owns mature technical reserves and a complete product lineup. We have developed 18 dedicated encoding control boards and adapter boards for both legacy and new camera blocks, covering all interface output requirements and providing one-stop supporting solutions to eliminate extra customer development work.
| Output Type | Matching Solutions for FCB-EV7520 | Matching Solutions for FCB-ER8530 |
|---|---|---|
| SDI Output | 3G-SDI Interface Board | 12G-SDI Interface Board |
| IP Output | MIPI/LVDS to IP Interface Board | 4KP60 AI IP Interface Board |

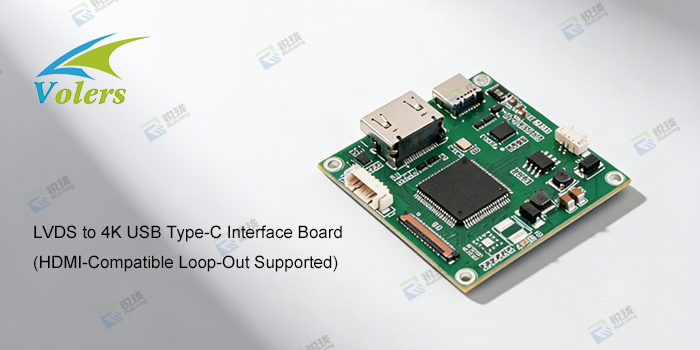

| USB Output | USB3.0 Video Capture Board, USB Type-C Video Capture Board | 4K USB Type-C Video Capture Board |
| HDMI Output | HD-HDMI Interface Board | 4KP30 HDMI Interface Board, 4KP60 HDMI Interface Board |
| MIPI Output | LVDS to MIPI Interface Board | 4K HDMI to MIPI Interface Board |
V. Cost-Effective Iteration Aligned with Long-Term Industry Intelligent Upgrade Trends
With near-perfect compatibility in body size, weight, mounting structure and control protocol plus minimal modification costs, the FCB-ER8530 delivers a transformative upgrade from 1080P to 4K UHD imaging, significantly boosting imaging precision, product grade and market added value of end devices.
