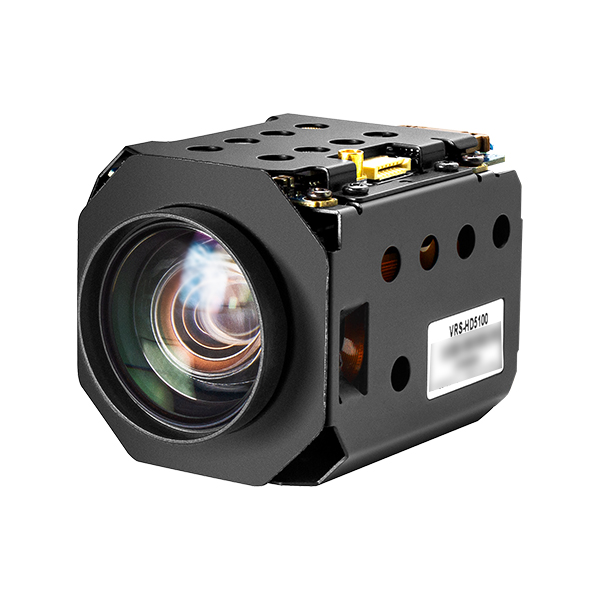

Volers VRS-HD5100 uses a top-notch 13″Panasonic CMOS sensor with a total pixel of up to 2.4M and an effective pixel of 2.1M. It has a 10x optical zoom function and the built-in 10x optical zoom lens has reliable performance.
Volers VRS-HD5100 supports full HD resolution,including 1920x1080p and 1280×720p formats,and supports two frame rates of 30fps and 60fps,ensuring smooth and smear-free images.In adition,it also has a day and night conversion function (ICR), which can automatically adjust acording to the ambient light to ensure clear monitoring results during the day and night.
Volers VRS-HD5100 uses WDR (wide dynamic range)technology.At the same time,it also supports both digital and analog output modes.Digital output includes HD-TVI,HD-SDI and EX-SDIl,and analog output is NTSC and PAL composite formats,making it easy to connect to various devices.
In terms of protocols,this camera supports multiple protocols,including VISCA,PELCO-D,PELCO-P and UTC(UP the Coax)control methods,making it easy to integrate with other systems.In addition,it also supports scheduled snapshot and event snapshot functions,as well as one-key watch and one-key cruise functions,which greatly improves the convenience and efficiency of monitoring.
Features
• 1/2.8″ 2MP Sony CMOS Sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 10x Optical Zoom (5.1~51mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : HD-TVI, HD-SDI, EX-SDI, CVBS
