Full HD Camera Block/

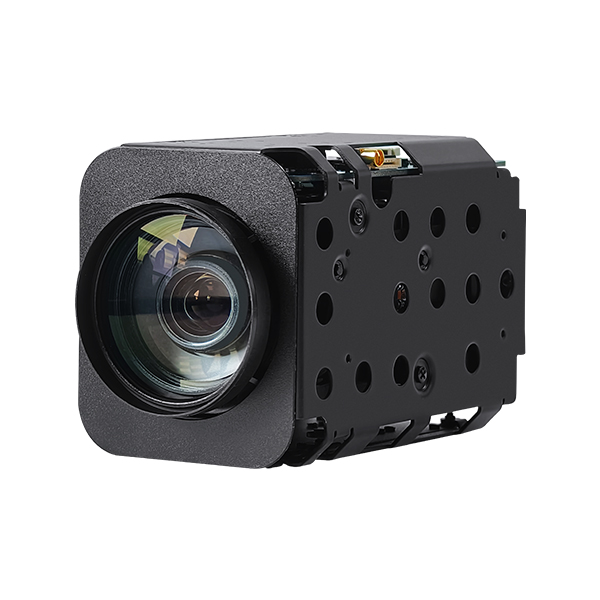

VRS-HD5200 CCTV Full HD 20X Zoom Camera Module

VRS-HD5200 Feature:



• Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.12MP)
• Resolutions: Digital:1080p/60(50)fps,1080p/30(25)fps,1080i/60, 1080i/50,720p/60(50)fps,720p/30(25)fps Analog:700TVL
• Video Output: Digital output: HD-SDI,EX-SDI
• Lens: f = 5.2mm - 104mm, F1.5 - F3.5
• Zoom: 20x Optical Zoom, 32x Digital Zoom
• Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation
• Power supply: 9V to 15V DC
• Size: 50.0 x 60.0 x 97.0mm
• Weight: approx. 232g

  • Product Details
  • Product Specs

View



The Full HD camera block,VRS-HD5200 has a 20x optical zoom,allowing you to easily adjust the field of view.It supports autofocus,auto Iris,auto D&N,as well as day and night conversion (ICR)and wide dynamic range(WDR) technology to ensure clear monitoring during the day and  night.

In addition, VRS-HD5200 also  uses digital  noise reduction (DNR)technology to reduce digital noise and present a purer picture.It also supports motion detection and  digital  image  stabilizer  (DIS)functions  to  further  improve  image  stability  and  clarity.

In  short, this  Full HD  zoom camera VRS-HD5200 has excellent performance and rich functions,which is the ideal choice in the field of security monitoring and other applications as well.



Features



• 1/2.8″ 2MP Sony Starvis CMOS sensor
• 1080p 60fps/30fps, 1080i 60fps, 720p 60fps/30fps
• 20x Optical Zoom(5.2mm ~ 104mm) & 32x Digital Zoom
• Day & Night (ICR)
• Real-time True WDR
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : HD-SDI, EX-SDI, CVBS

Volers VRS-HD5200 Product Specs

Model VRS-HD5200
Image Sensor 1/2.8" Sony CMOS Sensor
Total Pixels 1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels 1,937 (H) x 1,097 (V) = 2.12M Pixels
Scanning system Progressive Scan
Sync. System Internal
Resolution Digital:1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25

Analog : 700TVL

Min. illumination Color(1/30s, 78dB) : 0.01 lux, BW(1/30s, 78dB) : 0.001 lux

Color DSS(1/1s, 78dB) : 0.001 lux , BW DSS(1/1s, 78dB) : 0.0001 lux

Video Output HD : HD-SDI, EX-SDI

Analog SD : CVBS(without WDR)

S/N Ratio more than 50dB (AGC off)
Lens
Lens type 20x Day & Night Zoom Lens
Zoom Ratio Optical 20x, Digital 32x Zoom
Focal Length f = 5.2mm ~ 104mm
Aperture Ratio F1.5 (wide) ~ F3.5 (tele)
Angle of View (D, H, V) Wide 63.2° 56.4° 33.5°
Tele 3.5° 3.1° 1.7°
Function
AF Mode Auto / One Push / Manual
Min. Distance 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX 2x ~ 32x
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) Off / On
Shutter Speed 1/30(25) ~ 1/60,000 sec
Iris 0 ~ 20 steps
Digital Slow Shutter (DSS) Off / 2x / 4x / (8x : 60 or 50 fps mode only)
Brightness 0 ~ 20 steps
WDR/BLC OFF / WDR / BLC
Day&Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
HLC Off / On / Night Only
DNR Auto / Off / Low / Middle / High
Mirror Off / H / V / H&V
Sharpness 0 ~ 10 steps
ACE Off / Low / Middle / High
Defog Off / On(Auto / Manual)
Privacy Mask Max. 24 Areas
Motion Detection Max. 3 Areas
Defect Detection Off / On
System NTSC / PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200

Protocol : VISCA / Pelco-D / Pelco- P / Update

Language English / Simplified Chinese / Traditional Chinese / Japanese
Power Source 9V to 15V DC
Power Consumption 500mA
Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension 50(W) x 60(H) x 97(D)
Weight Approx 232g
