Full HD Camera Block/

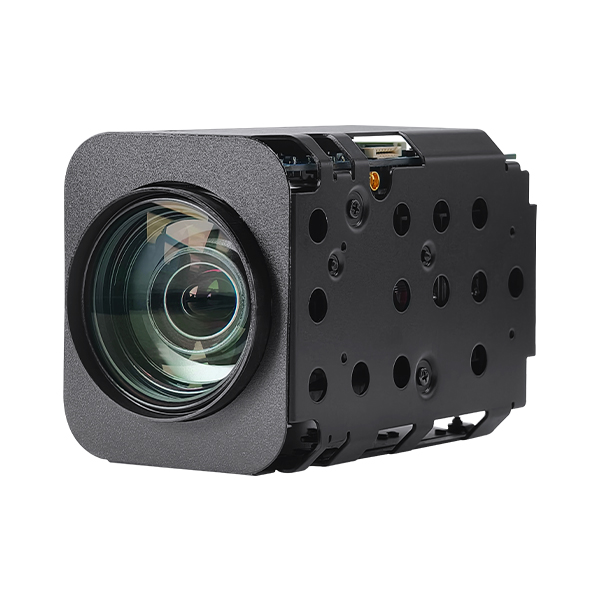

VRS-HD5300 Surveillance 1080P60fps 30X Zoom Auto focus Camera

VRS-HD5300 Feature:



• Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.13MP)
• Resolutions: Digital:1080p/60(50)fps,1080p/30(25)fps,720p/60(50)fps,720p/30(25)fps Analog:700TVL
• Video Output: Digital output: LVDS,EX-SDI
• Lens: f = 4.6mm - 136mm, F1.63 - F4.85
• Zoom: 30x Optical Zoom, 32x Digital Zoom
• Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation
• Power supply: 9V to 15V DC
• Size: 50.0 x 60.0 x 93.0mm
• Weight: approx. 278g

  • Product Details
  • Product Specs

View



Volers Full HD SDI camera VRS-HD5300 features a 30x optical zoom,allowing you to easily capture distant details. It supports full HD resolution,to ensure that the picture is clear and delicate.It also has day and night conversion (ICR)and  wide  dynamic   range  (WDR)technology,which  can   be  automatically  adjusted  according  to  ambient light to ensure clear monitoring during the day and night.

In addition,Volers VRS-HD5300 also uses digital noise reduction (DNR)technology to reduce digital noise and present a purer picture.It also supports the privacy mask function and the digital image stabilizer (DIS)function to further improve the stability and clarity of the image.It also has an intelligent motion detection function,which can automatically detect and track moving objects.

In short,this HD SDI zoom camera VRS-HD5300 has excellent performance and rich functions,perfect for various surveillance applications.



Features



• 1/2.8″ 2MP Sony Starvis CMOS sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 30x Optical Zoom(4.6mm ~ 136mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : HD-SDI, EX-SDI, HD-TVI, CVBS



Volers VRS-HD5300 Product Specs

Model VRS-HD5300
Image Sensor 1/2.8" Sony CMOS Sensor
Total Pixels 1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels 1,945 (H) x 1,097 (V) = 2.13M Pixels
Scanning system Progressive Scan
Sync. System Internal
Resolution Digital : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25

Analog : 700TVL

Min. illumination Color(1/30s, 79.5dB) : 0.005 lux, BW(1/30s, 79.5dB) : 0.0008 lux

Color DSS(1/8s, 79.5dB) : 0.00125 lux , BW DSS(1/8s, 79.5dB) : 0.0002 lux

Video Output HD :HD-SDI, EX-SDI

Analog SD : CVBS(without WDR), HD-TVI

S/N Ratio more than 50dB (AGC off)
Lens
Lens type 30x Day & Night Zoom Lens
Zoom Ratio Optical 30x, Digital 32x Zoom
Focal Length f = 4.6mm ~ 136mm
Aperture Ratio F1.63 (wide) ~ F4.85 (tele)
Angle of View (D, H, V) Wide 73.3°(±5%) 65.4°(±5%) 38.3°(±5%)
Tele 2.6°(±5%) 2.2°(±5%) 1.3°(±5%)
Function
AF Mode Auto / One Push / Manual
Min. Distance 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX 2x ~ 32x
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) Off / On
Shutter Speed 1/30(25) ~ 1/30,000 sec
Iris 0 ~ 20 steps
Digital Slow Shutter (DSS) Off / 2x / 4x / (8x : 60 or 50 fps mode only)
Brightness 0 ~ 20 steps
WDR/BLC OFF / WDR / BLC
Day&Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor
HLC Off / On / Night Only
DNR Auto / Off / Low / Middle / High
Mirror Off / H / V / H&V
Sharpness 0 ~ 10 steps
ACE Off / Low / Middle / High
Defog Off / On(Auto / Manual)
Privacy Mask Max. 24 Areas
Motion Detection Max. 3 Areas
Defect Detection Off / On
System NTSC / PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200

Protocol : VISCA / Pelco-D / Pelco- P / Update

Language English / Simplified Chinese / Traditional Chinese / Japanese
Power Source 9V to 15V DC
Power Consumption 500mA
Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension 50(W) x 60(H) x 93(D)
Weight 278g
