Sony Camera Information

FCB-EV7520 and FCB-EV7320,SONY movement parameters comparison

This time we will introduce SONY’s new high sensitivity, high quality FCB-EV7520 and FCB-EV7320 camera movements. The FCB-EV7520 and FCB-EV7320 are Exmor R™CMOS image sensors with 60fps superior sensitivity incorporated into SONY’s latest 1/2.8 full HD video (1920×1080).

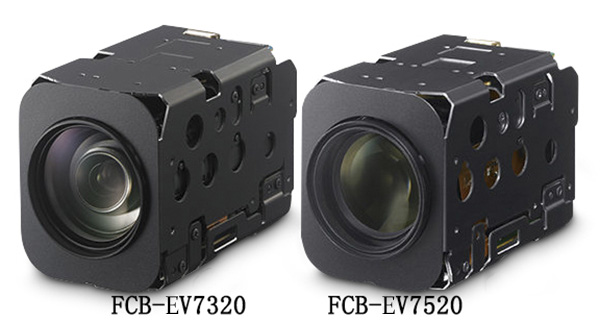

FCB-EV7520 and FCB-EV7320,SONY movement parameters comparison - Sony Camera Information - 1

FCB-EV7520 and FCB-EV7320


The new FBB-EV series cameras offer 20X and 30X optical zoom and many of the features of Canada’s world-renowned FCB, including automatic ICR, spherical privacy area masking (PZM) and settable defogging.

SONY FCB-EV7520:2.13 megapixel full HD camera with 60fps @ and 30x optical zoom

SONY FCB-EV7320:2.13 megapixel full HD camera with 60fps @ and 20x optical zoom

Upgraded features and benefits

① Wide-angle D mode: the new SONY FCB-EV7520 and FCB-EV7320 cameras monitor the brightness difference within the image under high contrast environment, when set to the maximum WDR 130 decibel has a great change.

(2) Privacy area masking: Privacy area masking protects private objects and areas, such as Windows, entrances, and exits of the house, which are within the view range of the camera but are not monitored. Private areas can be shielded on the display for privacy.

③ Defog mode: when there is fog and low contrast in the surrounding area of the object, the defog mode will make the subject appear more clear. The defog function initializes the camera’s user-adjustable level for the first time.

④ Automatic ICR function: FCB-EV7520 and FCB-EV7320 cameras are equipped with a high sensitivity imager, ideal day/night switching function.

Features and Advantages

Capture sharp, clear full HD (1080/60p) images: The high-performance Model 1/2.8 ExmorRCMOS image sensor achieves superb full HD (1920×1080) image quality, even in low lighting environments. Progressive scanning guarantees a smooth picture with reduced jitter – suitable for moving image shooting in detail.

Digital output (Y/CB/CR 4:2:2) : The digital LVDS interface provides easy access to IP and Gigabit Ethernet applications. Due to the digital interface, the quality of the video signal of the camera is maintained with minimal deterioration. This leads to cost savings due to direct connection with the codec/system without any additional components.

Get a more stable picture with image stabilizer: The camera’s built-in image stabilizer function counter creates a blurred, wobbly image effect with low frequency vibrations. This is useful for outdoor monitoring and flow monitoring applications, especially if the camera on the bridge or mounting rod is in use when there is vibration.

Color Enhancement: Suitable for low-vision applications, the new color enhancement option makes reading text and images less challenging. Available options include monochrome, binary, inverted and enhanced color modes.


Application scenarios

It is widely used in security monitoring and intelligent transportation. Here, Xiaodian believes that one of the more important functions is the fog penetration function. Morning fog is a common natural phenomenon, but it often causes traffic accidents.
