Sony FCB camera block
SONY FCB-EW9500H camera movement has three main features: high resolution, high sensitivity, super image stabilization.
1. High resolution
FCB-EW9500H uses a new image Sensor, 1/1.8-inch STARVIS CMOS Sensor, with an effective pixel of about 4.17 million. At the same time, the larger image sensor determines that the FCB-EW9500H has a higher sensitivity. And with a high resolution lens, to achieve a very high definition, and the use of mature AF/AE/AWB technology, even in low light environment can get accurate images. A new 30x enhanced optical zoom is also introduced to achieve high-quality images from the wide Angle end to the long focal end.

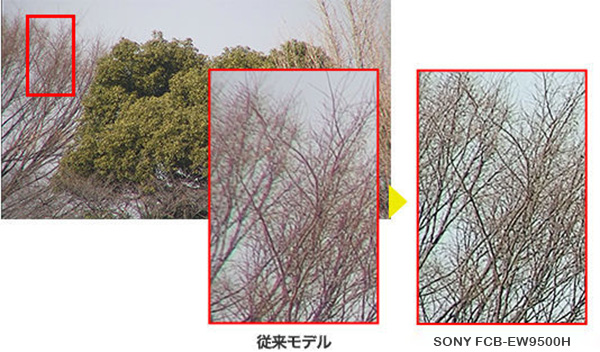

FCB-EW9500H High resolution
2. High sensitivity
FCB-EW9500H introduces new cell structure and circuit technology, which can use light efficiently and is nearly twice as sensitive as traditional image sensors. This makes it possible to capture the subject more clearly at night or in a dark room.

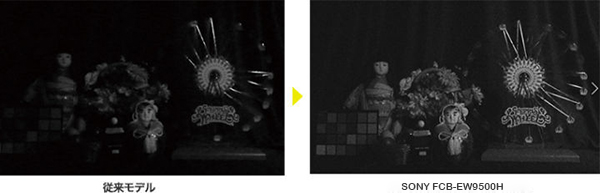

FCB-EW9500H High sensitivity
3. Super image stabilizer
FCB-EW9500H’s 4 megapixel provides a wide correction area, which is more effective in reducing image jitter blur in severe jitter and twisting environments. There are two anti-shake modes to choose from according to the corresponding jitter degree:
(1) Super (super)
A larger correction area than traditional electronic stabilization is used to suppress and reduce strong jitter.
(2) Super+
By using a larger correction area than the “Super” mode, the “Super+” mode can inhibit the reduction of more intense jitter that the “Super” mode cannot handle.
Therefore, FCB-EW9500H is more suitable for application in ship, ITS intelligent transportation, bridge, UAV, vehicle and other fields.

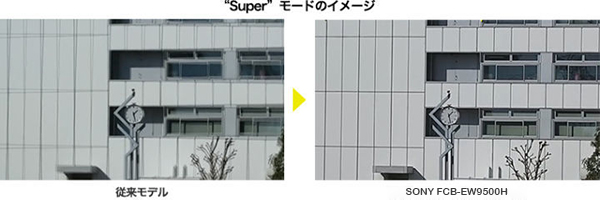

SONY FCB-EW9500H Super image stabilizer
Other functional features of FCB-EW9500H
* For the setting values, refer to the technical manual.
Focus
Equipped with various focus modes.
AE (Auto Exposure Mode)
White Balance
Equipped with various modes.
Motion Detection (MD)
This function instructs the camera to detect movement within the monitoring area and then send an alarm signal automatically.
Custom Preset
The camera shooting conditions can be stored and recalled. The settings are recalled when the power is turned on.
Position Preset
Using the position preset function, 16 sets of camera shooting conditions can be stored and recalled. This function allows you to achieve the desired status instantly, even without adjusting the various items each time.
Title Display
Temperature Readout
The camera unit’s internal temperature can be read fromtemperature sensor in stabled in the circuit board. Use it as areference value.

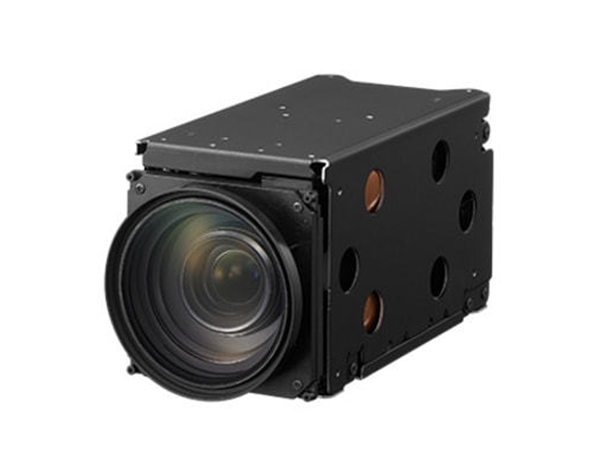

SONY FCB-EW9500H
