SONY FCB-EV9520L technical specifications show the technical parameters and functional characteristics of the product in detail, the following is its main content:
1. Product overview
SONY FCB-EV9520L is a full-HD starlight integrated camera movement module launched by SONY Corporation, which is suitable for security monitoring, intelligent transportation, video conferencing, drones, medical industry, robots/underwater robots, industrial inspection, autonomous driving, ship-borne systems and many other industries.
2. Main technical specifications
a. Cover Page and Summary of Specification
| Image sensor | Progressive scan CMOS image sensor 1/2.8 type “STARVIS 2” | ||||||
| Number of total pixels (H) x(V) |
2,014 x 1,196, 2.40 M [pixels] | ||||||
| Number of effective pixels (H)
x(V) |
1,965 x 1,113, 2.18 M [pixels] | ||||||
|
1,920 x 1,080, 2.07M [pixels] | ||||||
| Lens | Focal length | 4.3 [mm] to 129 [mm] | |||||
| Magnification | 30 [times] | ||||||
| Horizontal angle of view | Distortion Correction OFF:
64.0[degree] (Wide) 2.3[degree] (Tele) |
||||||
| F value | F1.6 (Wide) to F4.7 (Tele) | ||||||
| Control mechanics |
Zoom motor | Stepping motor | |||||
| Focus motor | Stepping motor | ||||||
| Iris | Meter Galvano method | ||||||
| IRCF | Meter Galvano method | ||||||
| Output mode | [FHD]1080p/60,1080p/59.94,1080i/60,1080i/59.94,1080p/50,1080i/50,1080p/30,1080p/29.97,1080p/25 [HD]720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97,720p/25 |
||||||
| Synchronized Codes |
Progressive | Comparable to SMPTE 274 M, 296 M | |||||
| Interlace | Comparable to SMPTE 274 M | ||||||
| I/O pins | Image signal Output | HD Digital (LVDS) | |||||
| Control signal I/O | VISCA protocol (CMOS 3.3 [V], 5.5V tolerance) | ||||||
| Power, others | Power supply | DC 7.0 [V] to DC 12.0 [V] | |||||
| Power consumption | 4.4 W (Typ. DC IN 7-12V, zoom/focus inactive)) | ||||||
| Storage temperature | -20 to +60 [˚C] / 20 [%] to 95 [%] Absolute humidity: 36 [g/m3] |
||||||
| Operating temperature | -5 to +60 [˚C] / 20 [%] to 80 [%] Absolute humidity: 36 [g/m3] |
||||||
| Package dimensions (W) x (H) x (D) |
50 [mm] x60 [mm] x 89.7 [mm ] | ||||||
| Package mass | Approx. 239[g] | ||||||
b. Function
| Exposure | Full Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation |
| White Balance | Auto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto |
| Focus | Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit |
| Wide Dynamic Range | Yes |
| Visibility Enhancer | Yes |
| Noise Reduction | 3D / 2D Noise Reduction |
| ICR (Day and Night) | Yes |
| Image Stabilizer (Super) | Yes |
| Image Stabilizer (Super+) | Yes. |
| Slow AE Response | Yes |
| High Sensitivity | Yes |
| Gamma | Standard / Straight gamma |
| D-ZOOM | 12x |
| Character Gen. | Yes |
| Defog | Yes |
| Picture Effect | Black & White |
| Spherical Privacy Zone Masking | Yes |
| E-Flip | Yes |
| HLC | Yes |
Sensor: 1/2.8″ STARVIS2 CMOS
Effective pixels: about 2.13 million pixels
Lens: 30x optical zoom
Digital zoom: 12x (up to 360x, combined with optical zoom)
Focal length range: f=4.3 mm (wide) to 129 mm (narrow)
Aperture range: F1.6 to F4.7
Output format: Full HD HDMI 1080P/60, 1080P/59.94, 1080P/50 and other formats
Video output: LVDS
Wide dynamic range: 130 dB
Starlight night vision: Starlight low illuminance performance optimization, infrared night vision effect is better
Region function: Support region auto focus, region auto exposure, region auto white balance
Anti-shake function: Provides “S” and “S+” two anti-shake modes
Other features:
Automatic day/night conversion: Automatically switches infrared cut-off filters according to ambient light
Visibility Enhancement: Increases the brightness of dark parts of the image and automatically corrects brightness and contrast
Fog transmission mode: Reduces the impact of fog and improves image clarity
Noise reduction function: Remove screen noise to provide clearer images
Privacy occlusion function: Up to 8 privacy occlusion areas can be set
StableZoom feature: Fixed the zoom performance when the anti-shake feature is turned on
Physical parameters:

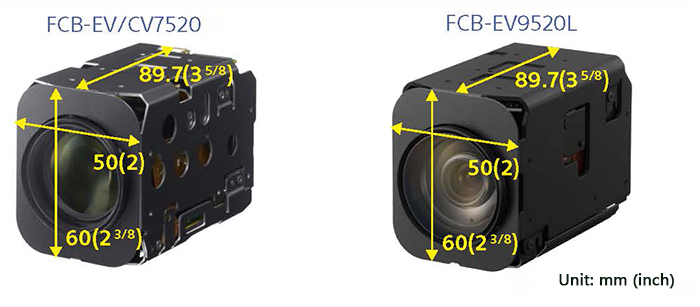

Dimensions (W x H x D) : 50 mm x 60 mm x 89.7 mm
Weight: 238 grams
Power requirements: DC 7 volts to 12 volts
Power consumption: 5.0W (6.8W during motor operation)
3. Application fields
SONY FCB-EV9520L with its excellent image quality and a variety of functions, widely used in security monitoring, intelligent transportation, video conferencing, drones, medical industry, robotics/underwater robots and other fields.
4. Compatibility and upgrade
Compatibility: The SONY FCB-EV9520L retains the exact same shape dimensions and LVDS output pin definition as the FCB-CV7520 (A) and FCB-EV7520 (A), and can be directly integrated and replaced in most cases, reducing engineering changes.
Upgrade Path: Provides the market with an upgrade option for the widely used FCB-CV7520 (A) and FCB-EV7520 (A) series.
5. Other characteristics
Autofocus: Supports a variety of autofocus modes, including normal autofocus, interval autofocus, zoom trigger autofocus, etc.
Automatic exposure: Support automatic, manual, priority mode (shutter priority & aperture priority) and other exposure modes.
White balance: Supports multiple white balance modes, including automatic, ATW, indoor, outdoor, one-click WB, and manual WB.
Alarm function: It can detect the movement of objects in the monitoring area and automatically send alarms.
Save and call shooting setting parameters: can save and call 16 groups of camera shooting setting parameter data.
Ruiloog, as an official authorized distributor of SONY (China), has the right and obligation to ensure that the SONY FCB series cameras sold are original and genuine SONY, and provide pre-sales and after-sales technical support.
At the same time, as the FCB camera secondary development solution provider, Xuancheng Technology has been in the field of video products for 16 years, accumulated rich industry experience, can provide users with customized video product solutions, including hardware and software development and integration, such as video capture, image processing, video conversion, video transmission, related control.
More detailed parameters can refer to the technical specifications, SONY FCB-EV9520L official technical specifications can be obtained from our customer service staff.
