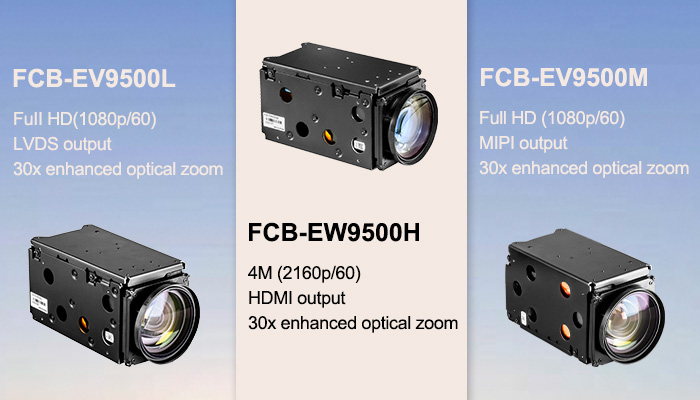

SONY FCB-EW9500H, FCB-EV9500M and FCB-EV9500L are color camera modules with higher visibility, the three models have the same appearance size, but the output pixels and output signals are different, respectively 4 million pixels (4M, HDMI signal output), Full HD (Full HD). MIPI signal output) and Full HD (LVDS signal output).
SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L
They enable a compact size 30x enhanced optical zoom on a 1/1.8 inch image sensor. It can be widely used in a variety of scenes, including harsh conditions, especially the new super image stabilization function compared with the traditional model products, which can greatly improve the image jitter blur suppression effect.
FCB-EW9500H,FCB-EV9500M,FCB-EV9500L
4M (2160p/60)
HDMI output
30x Enhanced optical zoom
Full HD (1080p/60)
MIPI output
30x Enhanced optical zoom
FuII HD(1080p/60)
LVDS output
30x Enhanced optical zoom
High definition
The SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L utilizes a 4-megapixel image sensor and high-resolution lens to achieve superior clarity and use proven AF/AE/AWB technology to achieve accurate images even in low light environments. Combined with enhanced optical zoom technology, high image quality is achieved from near focal end to far focal end.
High sensitivity
SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L through the use of new pixel unit structure and circuit technology, the series of products more efficient use of light, and traditional image sensor products compared to achieve 2 times the sensitivity. As a result, clear images can be obtained even at night and in dark environments.
Super image stabilization
SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L can achieve very accurate video by reducing image blur even in harsh environments with severe shake through greatly improved blur suppression and image stabilization technology. There are “Super” and” Super+(plus) “* 2 modes.
* In Full HD or HD output
SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L Super image stabilization
30x Enhanced optical zoom
The SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L use a compact optical lens designed for up to 8 megapixel resolutions to maximize coverage of 4 megapixel image sensors.
The newly designed lens provides high definition and low aberration performance, allowing it to capture high definition pictures from far to near focus, from the center of the frame to the surrounding span.

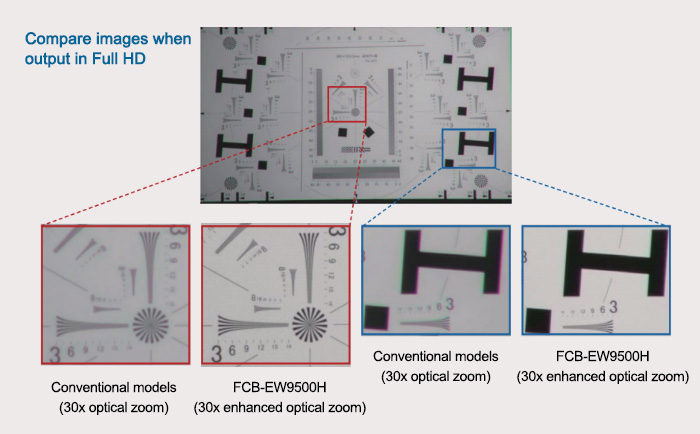

SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L use 30x enhanced optical zoom without loss of picture quality. Experience full high resolution and significant color suppression in full HD (FuIHD) output, as well as high image resolution at 4 megapixel (4M) output.
The SONY FCB-EW9500H,FCB-EV9500M,FCB-EV9500L is equipped with approximately 4.17 million effective pixels, 1/1.8 inch model high sensitivity, anti-reflection (AR, anti-refective) anti-reflection coating CMOS image sensor
In the near infrared to infrared band has a high sensitivity, especially suitable for application in the field of security. In addition, the AR anti-reflection coating minimizes double image/ghost phenomena and is able to capture images at night and in dark environments without losing critical information.
Reduce ghost/image effects

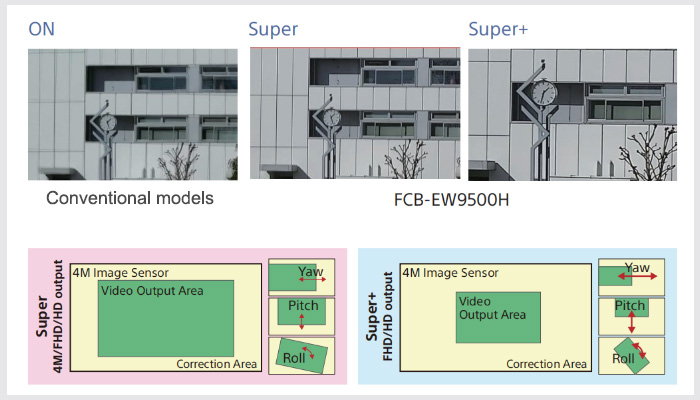

Super Image Stabilization uses 4 megapixels to provide a wide correction area, allowing this series of cameras to more effectively reduce image shake and blur in severe shake and twist environments than traditional models. According to the corresponding jitter degree, there are two anti-jitter modes to choose from.
Super uses a larger correction area than traditional electronic buffering to suppress and reduce strong jitter.
Super+(Super+) By using a larger correction area than the “Super” mode, the “super +” mode can be suppressed to reduce the more intense jitter that the “Super” mode cannot handle.
Potential applications: ships, ITS intelligent transportation, Bridges, drones, vehicle applications, etc.
Reduce glare/halos with a new aperture
Traditional products can produce diamond-shaped halos and ghosting resulting in poor focusing affecting image quality. Compared to the traditional 2-blade structure used in the new lens, the aperture uses 7 blades, which makes the resulting glare/halo relatively more circular, thus greatly improving the image quality.
Color images are obtained in ICR ON mode (night sensitive infrared mode)
Traditional products can only produce black and white images when the infrared filter is removed (when infrared light is perceived). The new ICR ON COLOR feature enables the camera to capture color images even when the infrared filter is removed and the infrared light is sensed. Color visibility can be effectively obtained in dark environments.
Point focus, point exposure, point white balance
The reference points for auto focus, auto exposure, auto white balance (AF,AE,AWB) can be set in specific areas within the picture. Any rectangular area can be independently set as a reference area in the screen divided into 6×8 grid areas.
For example, if the target location is specified by the Spot AE function. The exposure level of the automatic exposure of the captured image changes only according to the target area, and will not be affected by the change of the degree outside the area.
Wide dynamic (Wide-D)
Wide-D mode is a mode that can divide the image into several areas to correct and increase the brightness of the dark area, and reduce the brightness of the bright area to adjust the sharp contrast of light and dark in the image. It makes it possible to capture more visible images in highly contrasting environments, even if the subject has a strong contrast, such as a backlight or contains a particularly bright shooting area.
Enhanced Visibility (VE)
Depending on the scene, the visibility enhancement function makes the dark part of the picture brighter and automatically corrects the brightness and contrast of the picture so that the bright part is also clear.
Reduces jelly effect distortion of images
Because of the jelly effect of the rolling shutter, the image curve when shooting a rapidly moving target is suppressed and reduced.
Fog penetration (low/medium/high)
When the area around the shooting target is foggy or low contrast, the fog through mode can reduce the impact of fog and make the shooting target appear more clearly in the image. You can choose to use 4 different gears: Off, Low, medium, and high.
The effect of each gear is automatically adjusted according to the concentration of fog
Noise reduction (NR)
Noise reduction removes image noise (random and non-random) to provide a sharper image
Privacy occlusion
Privacy covered areas protect the privacy of personal objects and areas, such as Windows, entrances and exits of houses that are within camera range but not in the surveillance area. The Privacy Occluded Areas feature can be set to occlude these areas of the screen to protect privacy.
. Each screen can be set up 8 occlusion areas
. Each occluded area can be individually set to on/off display.
StableZoomm
“StableZoom” is used to correct the performance of different zoom multiples when the anti-shake function is turned on, by using a combination of optical zoom and digital zoom so that the Angle of view of the image changes smoothly during the zoom to about 36x.
Image effect
· Electronic flip of image
· Image freezing
· Black and white (gray scale images)
Automatic day/night switching (infrared filter removal switching)
The automatic Day/Night conversion mode automatically adjusts the relevant Settings to adjust the removal or addition of infrared filters. Depending on the level of darkness set, the infrared filter will automatically remove (ICROn) to increase the infrared light sensitivity of the camera. Depending on the brightness level set, the infrared filter is automatically added (ICR Off). At the same time, when the supporting system is equipped with infrared lights, the internal data of the camera can enable the system to make appropriate decisions to avoid failure. The automatic day/night conversion function works in Full Auto Auto exposure mode, and when set to Auto ICR color mode, ICRon(Night sensing infrared) is in color mode.
Point source avoidance
Avoid auto-focus (AF) and one push AF failure when shooting targets with bright point light sources, such as outdoor lights.
For example, when using a security camera to shoot an outdoor scene, due to the influence of point light sources such as bright outdoor lights in the picture, the camera may not be able to automatically focus on a clear picture, in this case you can use the function to reduce the impact of the light, so that AF/One push AF can focus on a clear target.
Other functions
■ Focus
There are different focusing modes
■ Automatic exposure (AE)
■ Automatic white balance
There are different models.
■ Motion detection (MD) This function can sense the movement of the object in the monitoring area of the screen and automatically send an alarm signal.
■ Custom Preset camera shooting setting conditions can be saved and invoked. The saved Settings can be automatically invoked when the camera is powered on.
■ Position Preset Using this feature 16 sets of camera shooting setting conditions can be saved and invoked. This function you do not have to set the Settings of each camera each time, you can immediately call the preset Settings to achieve the required Settings.
■ Subtitles display
■ Temperature reading
The internal temperature of the camera can be read from the temperature sensor of the circuit board as a reference.
