In the field of high-quality video signal processing, in the face of diverse interface board solutions such as 3G-SDI, HDMI, and IP, how does the USB 3.0 video capture board stand out and become a core tool for engineers’ debugging work? What hardcore traits exactly stem from its irreplaceable appeal?
1. High-speed data transmission to meet high-definition requirements
The transmission rate of the USB3.0 video capture board interface is as high as 5Gbps. This high speed can easily meet the high-speed transmission requirements of high-definition videos, big data images, etc., ensuring clear and smooth pictures and greatly improving work efficiency.
During the engineers’ inspection of the camera module and the development and debugging of related software, the high transmission rate advantage of the USB3.0 video capture board was fully demonstrated. Engineers can quickly obtain a large amount of high-definition image data to precisely detect the performance of boards, promptly identify and optimize problems in software, significantly shorten the development cycle, enhance product quality and stability, provide a strong guarantee for the smooth progress of projects, and achieve a qualitative leap in work efficiency.
2. quickly output to a computer to reduce redundant adapters
For engineers, the performance requirements of the control board for debugging work are not the key. However, during the debugging process, frequent repetitive operations often consume a great deal of time. Therefore, simple and quick operation steps are particularly important. They can significantly enhance the work efficiency of engineers and make the debugging work more efficient and smooth.

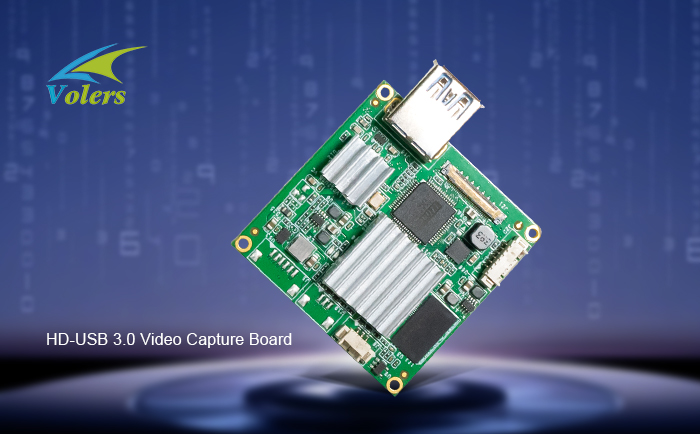

Xuanzhan Technology, as a professional provider of high-definition video secondary development solutions, with its outstanding R&D capabilities, has meticulously crafted the USB 3.0 video capture board. Through the USB cable, it can quickly and stably transmit the video signal of the high-definition camera module to the computer. Meanwhile, with the TTL232 serial port, it enables precise control of the module. It covers key functions such as zoom, gain, and white balance.
This module reduces the redundant transfer of intermediate links, greatly enhancing the overall performance and stability of the system, and providing engineers with an efficient and convenient user experience for debugging.
3. Flexible control functions for precise operation of the camera
The USB 3.0 video capture board supports TTL serial port control of the camera and can also communicate with external microcontroller units (MCU). This means that engineers can flexibly adjust key parameters such as the camera’s focal length, gain, and white balance by connecting to a computer or TTL serial port, achieving precise control of the camera. In addition, it can be flexibly interconnected with other devices, providing more powerful support for video capture, processing and transmission.
4. Strong compatibility and easy integration with existing systems
The USB3.0 video capture board supports multiple operating systems and platforms, including Windows, Mac and Linux systems. Most systems are driver-free, which significantly reduces the difficulty and cost of development, enabling engineers to easily integrate the module into existing systems without the need for complex driver installation and debugging.
5. with the support of the VISCA protocol, it is compatible with more camera blocks
The USB3.0 video capture board is not only compatible with Sony FCB 7 series and 9 series high-definition integrated camera modules, but also with other brands of high-definition camera modules that follow the Sony VISCA protocol. This compatibility not only provides engineers with more options, but also reduces the complexity and cost of system integration.
6. Multiple versions to meet specific needs
In response to the diverse debugging needs of engineers, Xuanzhan Technology, the official authorized distributor of SONY (China), has developed multiple versions of USB video capture boards. These versions cover a wide range of functions and performance parameters, capable of meeting various scenarios from basic testing to complex system integration.

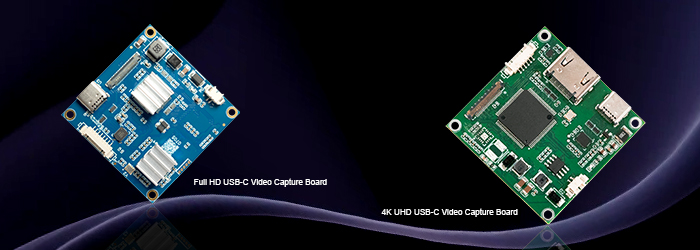

The USB TYPE-C video capture board is a low-end version of the USB3.0 video capture board. It adopts domestic integrated chips, which not only effectively avoids supply disruptions caused by trade restrictions but also has more advantages in cost control. For module debugging with lower requirements, it is an excellent choice to reduce costs.
4K TYPE-C video capture board, compatible with Sony and 4K ultra-high-definition camera modules following the Sony VISCA protocol
It can achieve high-speed and stable video signal transmission. Equipped with a simple TYPE-C interface, it is plug-and-play and does not require complex Settings, enabling engineers to debug and operate more efficiently.
Summary
The USB3.0 video capture board, with its multiple advantages such as high-speed transmission, quick operation, flexible control, strong compatibility and applicability, has become a powerful assistant for engineers in their debugging work. Whether it is for real-time transmission of high-definition images in security monitoring, precise collection of image data in the medical imaging field, or rapid capture of production details in industrial inspection, it can provide engineers with stable, efficient and convenient video collection and transmission solutions for debugging.
