In scenarios such as the identification of fine cracks in industrial inspection, precise operation navigation in medical surgeries, and dynamic target tracking in drone aerial photography, traditional cameras often lose key information due to insufficient frame rates, resolution limitations, or dynamic blurring issues.

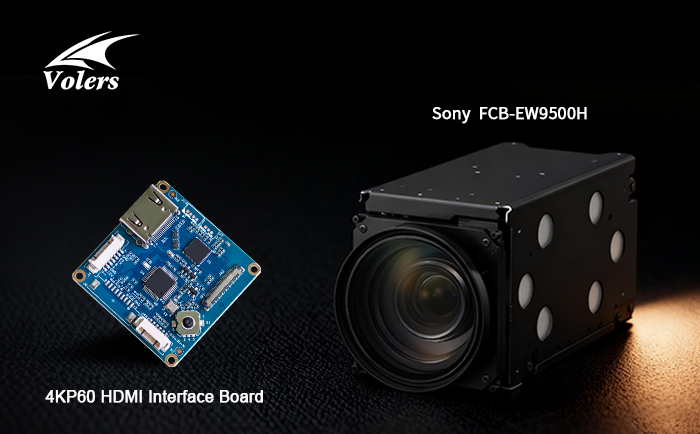

As an officially authorized dealer of SONY (China) and a provider of high-definition video secondary development solutions, Xuanzhan Technology has broken through technical bottlenecks by combining the SONY FCB-EW9500H integrated camera module with Xuanzhan Technology’s 4KP60 HDMI interface board, achieving a hardcore performance of 4 million pixels and 60 frames per second. Provide full-scenario ultra-high-definition visual solutions for fields such as security, healthcare, industry, and transportation.
I. Technological Breakthrough: A dual disruption of 4 million pixels and 60 frames per second
1. FCB-EW9500H: A 4-Megapixel “Detail Catcher”
Sensor and optical performance: Equipped with a 1/1.8-inch STARVIS CMOS sensor, it has an effective pixel count of 4.17 million and supports 2160P/60 resolution output. The 30x enhanced optical zoom lens covers a focal length from 6.5mm to 162.5mm, and when combined with 12x digital zoom, it can clearly capture micron-level defects in mechanical parts or tissue reactions at surgical incisions.
Low illumination and infrared night vision: Even in an extremely dark environment of 0.00008lx (ICR-ON mode), it can still output clear images, ensuring visual reliability in scenarios such as night inspections and emergency surgeries.
Intelligent image stabilization and area focusing: Super+ image stabilizer technology suppresses blurring caused by robotic arm vibration or bridge jolts; The area auto-focusing function can lock onto the target area (such as the screws on the laboratory bench), ensuring that the focus remains clear even when the teacher walks or the equipment moves.
2. 4K P60 HDMI interface Board: The “Smooth Engine” for High Frame Rate
Lossless transmission and low latency: Directly connected to the FCB-EW9500H via the LVDS interface, it is plug-and-play and can output 2160P/60 ultra-high-definition signals without complex Settings. The increased frame rate reduces the trailing images of high-speed targets such as racing cars and flying birds in drone aerial photography, and the picture smoothness is comparable to the real-time perception of the human eye.
Multi-functional control and protocol compatibility: Supports RS485/RS232/TTL232 control protocols (the latter two are optional), and parameters such as zoom, focus, and white balance can be adjusted through buttons or software. Compatible with SONY’s VISCA protocol, it can be seamlessly integrated with 4K ultra-high-definition movement modules of other brands, reducing system integration costs.
Customized expansion functions: power-off memory, preset position cruise and other functions (optional) to meet the automation requirements of industrial inspection, such as preset pipeline inspection paths, automatically capture corrosion points and send back images.
Ii. Scene Implementation: Full coverage from the laboratory to the sky
1. Intelligent traffic management
In the expressway checkpoint system, the FCB-EW9500H, in combination with a 4KP60 HDMI interface board, can accurately capture the license plates of speeding vehicles and the facial features of drivers. A high frame rate of 60 frames per second enhances the processing frame rate of the license plate recognition algorithm, effectively improving the recognition accuracy.
2. Industrial inspection
High-speed motion inspection: On automotive assembly lines, the 30x optical zoom and 60 frames per second output of the FCB-EW9500H can stably capture the grasping movements of the robotic arm, enhancing the efficiency of quality inspection.
3. Security monitoring
In the field of industrial inspection, the 30x optical zoom capability enables the FCB-EW9500H to capture minute defect features. In security monitoring, its new three-zone function (zone auto-focus, zone auto-exposure and zone auto-white balance) can automatically adjust according to specific areas in the image to ensure better image quality under different lighting and environmental conditions.
Iii. Ecological Empowerment: Modular design lowers the development threshold

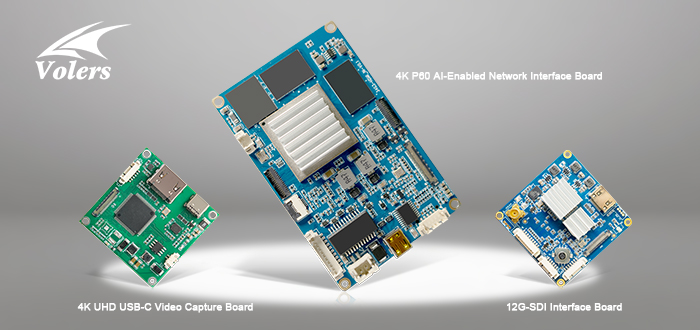

The SONY FCB-EW9500H, in addition to being equipped with a 4KP60 HDMI interface board, Xuanzhan Technology, a provider of high-definition video secondary development solutions, also offers 12G-SDI interface boards (for long-distance transmission in the broadcasting and television industry), 4KP60 AI network interface boards (for converting camera video to network signals), 4K USB TYPE-C encoding acquisition modules (for direct connection to a computer and low cost), and other options. It covers the demands of scenarios such as unmanned aerial vehicle pods, operating room monitoring, and security centers.
The combination of SONY FCB-EW9500H and 4K P60 HDMI interface board, with a core performance of 4 million pixels and 60 frames per second, combined with technological innovations such as anti-shake, low-light, and intelligent control, provides video capture for fields such as medical care, industry, transportation, and security. A full-chain solution covering video conversion, capture, transmission and control of cameras. Whether it is the precise operation in the operating room, the quality control on the production line, or the dynamic monitoring of intelligent transportation, this combination is driving the industry towards a more efficient and intelligent direction through the popularization of technology.
